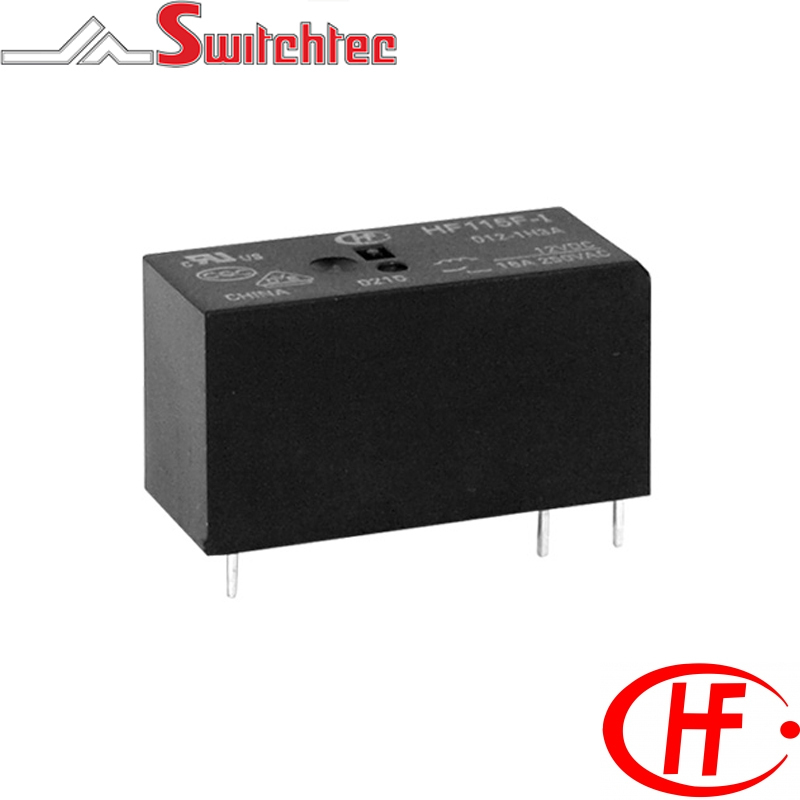

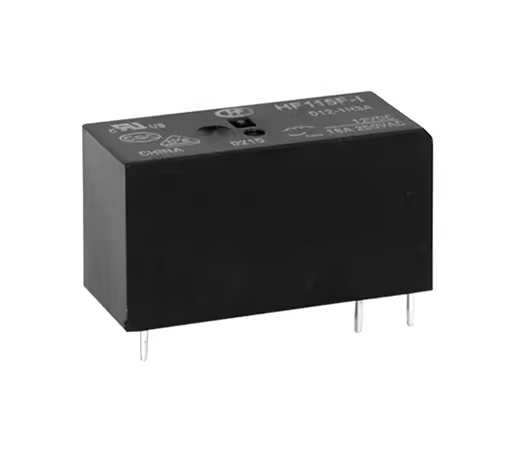

16 Amp 1 Pole Normally Open - 1 Form A

16 Amp 1 Pole Normally Open - 1 Form A

  • 16 amp switching capacity
  • High inrush TV5, 80A (at 125VAC)
  • Low height: 15.7mm
  • 1 pole Form A contact
  • 5KVA dielectric strength (between coil & contacts)
  • Creepage distance 10mm
  • Contact Material AgSnO2In2O3
  • Wash tight
  • RoHS Complaint
  • Approvals VDE, UL & CUL 0435/0631/0700/0860
  • Relays compliant with IEC 60335 -1 also available



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF115FI0051HS3A HONGFA PCB POWER RELAY 5VDC 16A 1NO HF115F-I/005-1HS3A 1A - Single Pole Normally Open 5VDC 400mW 7.5 16 AMP 3.5 0.5 62 x (1�10%)
HF115FI0061HS3A HONGFA PCB POWER RELAY 6VDC 16A 1NO HF115F-I/006-1HS3A 1A - Single Pole Normally Open 6VDC 400mW 9 16 AMP 4.2 0.6 90 x (1�10%)
HF115FI0091HS3A HONGFA PCB POWER RELAY 9VDC 16A 1NO HF115F-I/009-1HS3A 1A - Single Pole Normally Open 9VDC 400mW 13.5 16 AMP 6.3 0.9 202 x (1�10%)
HF115FI0121HS3A HONGFA PCB POWER RELAY 12VDC 16A 1NO HF115F-I/012-1HS3A 1A - Single Pole Normally Open 12VDC 400mW 18 16 AMP 8.4 1.2 360 x (1�10%)
HF115FI0181HS3A HONGFA PCB POWER RELAY 18VDC 16A 1NO HF115F-I/018-1HS3A 1A - Single Pole Normally Open 18VDC 400mW 27 16 AMP 12.6 1.8 810 x (1�10%)
HF115FI0241HS3A HONGFA PCB POWER RELAY 24VDC 16A 1NO HF115F-I/024-1HS3A 1A - Single Pole Normally Open 24VDC 400mW 36 16 AMP 16.8 2.4 1440 x (1�10%)
HF115FI0481HS3A HONGFA PCB POWER RELAY 48VDC 16A 1NO HF115F-I/048-1HS3A 1A - Single Pole Normally Open 48VDC 400mW 72 16 AMP 33.6 4.8 5760 x (1�15%)
HF115FI0601HS3A HONGFA PCB POWER RELAY 60VDC 16A 1NO HF115F-I/060-1HS3A 1A - Single Pole Normally Open 60VDC 400mW 90 16 AMP 42 6 7500 x (1�15%)
HF115FI1101HS3A HONGFA PCB POWER RELAY 110DC 16A 1NO HF115F-I/110-1HS3A 1A - Single Pole Normally Open 110VDC 400mW 165 16 AMP 77 11 25200 x (1�15%)
