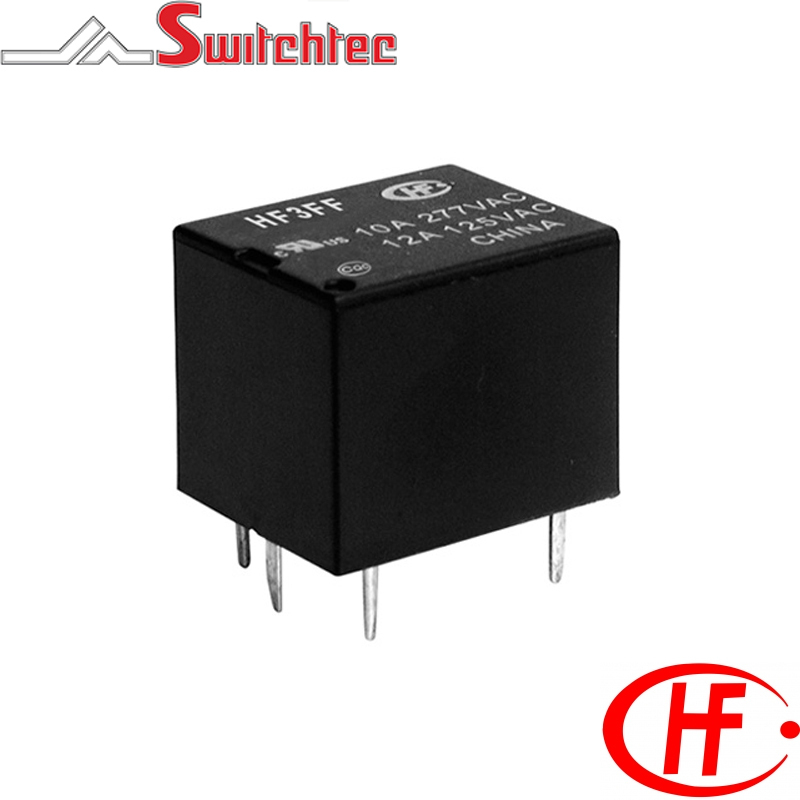

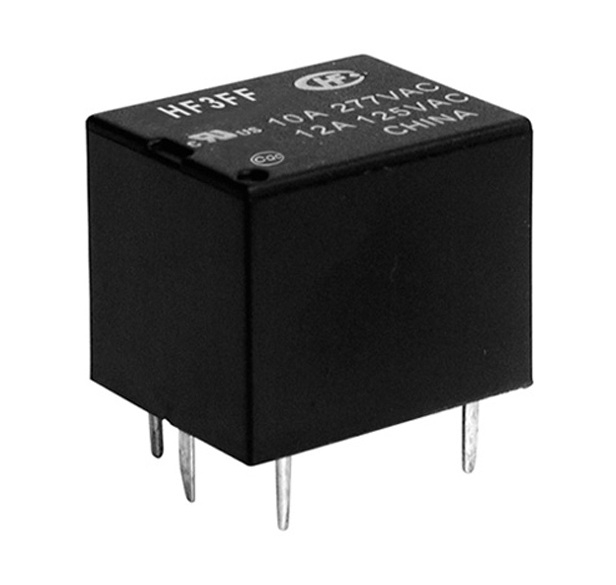

15 Amp 1 Pole Normally Open Relay

15 Amp 1 Pole Normally Open Relay

  • 15A 277VAC/28VDC contact rating
  • 1 Form A configuration
  • Fully sealed
  • Wash Tight and flux proofed types available
  • 360mW Coil
  • Contact Materials AgSn02, AgCdO also available
  • RoHS compliant
  • Class F insulation as standard
  • Approvals UL & CUL, TUV



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF3FF0051HSTF HONGFA PCB CUBE RELAY 5DC 10A SPST HF3FF/005-1HSTF 1A - Single Pole Normally Open 5VDC 360mW 6.5 15 AMP 3.8 0.5 70 x (1�10%)
HF3FF0061HSTF HONGFA PCB CUBE RELAY 6DC 10A SPST HF3FF/006-1HSTF 1A - Single Pole Normally Open 6VDC 360mW 7.8 15 AMP 4.5 0.6 100 x (1�10%)
HF3FF0091HSTF HONGFA PCB CUBE RELAY 9DC 10A SPST HF3FF/009-1HSTF 1A - Single Pole Normally Open 9VDC 360mW 11.7 15 AMP 6.8 0.9 225 x (1�10%)
HF3FF0121HSTF HONGFA PCB CUBE RELAY 12DC 10A SPST HF3FF/012-1HSTF 1A - Single Pole Normally Open 12VDC 360mW 15.6 15 AMP 9 1.2 400 x (1�10%)
HF3FF0181HSTF HONGFA PCB CUBE RELAY 18DC 10A SPST HF3FF/0181HSTF 1A - Single Pole Normally Open 18VDC 360mW 23.4 15 AMP 13.5 1.8 900 x (1�10%)
HF3FF0241HSTF HONGFA PCB CUBE RELAY 24DC 10A SPST HF3FF/024-1HSTF 1A - Single Pole Normally Open 24VDC 360mW 31.2 15 AMP 18 2.4 1600 x (1�10%)
HF3FF0481HSTF HONGFA PCB CUBE RELAY 48DC 10A SPST HF3FF/048-1HSTF 1A - Single Pole Normally Open 48VDC 510mW 62.4 15 AMP 36 4.8 4500 x (1�10%)
