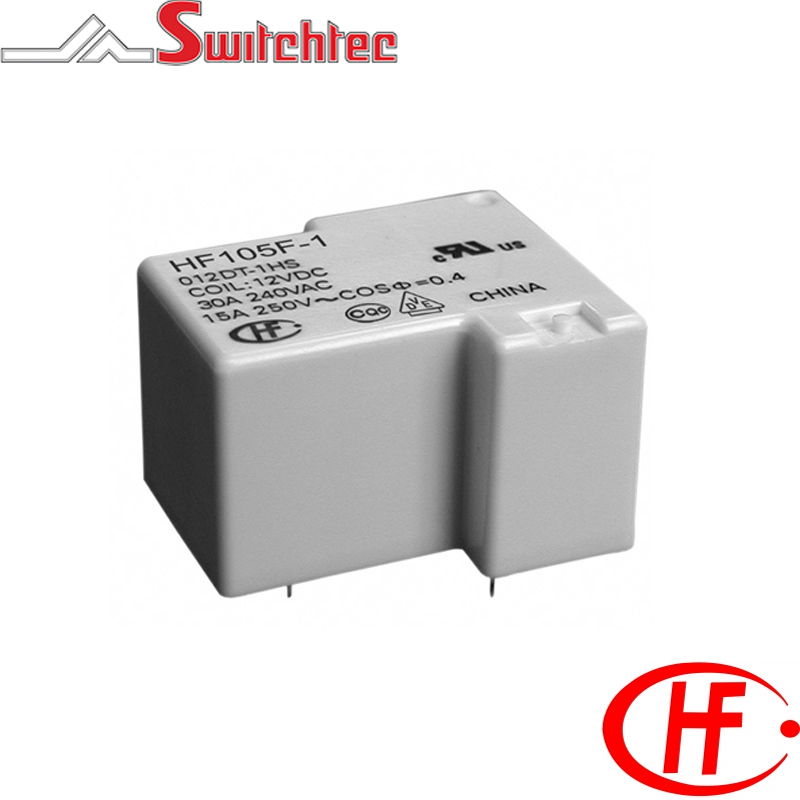

15 Amp 1 Pole Normally Closed Relay AC Coil With Pin 6

15 Amp 1 Pole Normally Closed Relay AC Coil With Pin 6



    • 15 Amp switching capacity



    • AC Coil



    • 1 Form B contact



    • Heavy load up to 7200VA



    • Wash tight



    • 4KV dielectric strength (between coil and contacts)



    • Class F Insulation available



    • Contact materials AgSnO2



    • RoHS compliant



    • Approvals UL, CUL and TUV



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VAC Maximum Rated Switching Current Coil ? � 10% Pick Up Max VAC Drop Out Max VAC Price
HF105F1012A61DSTF HONGFA PCB POWER RELAY 12VAC 1NC HF105F-1/012A6-1DSTF(136) 1B - Single Pole Normally Closed 12VAC 2VA 15.6 15 AMP 25 x (1�10%) 9.6 2.4
HF105F1024A61DSTF HONGFA PCB POWER RELAY 24VAC 1NC HF105F-1/024A6-1DSTF(136) 1B - Single Pole Normally Closed 24VAC 2VA 31.2 15 AMP 100 x (1�10%) 19.2 4.8
HF105F1120A61DSTF HONGFA PCB POWER RELAY 120AC 1NC HF105F-1/120A6-1DSTF(136) 1B - Single Pole Normally Closed 120VAC 2VA 156 15 AMP 2500 x (1�10%) 96 24
HF105F1208A61DSTF HONGFA PCB POWER RELAY 208AC 1NC HF105F-1/208A6-1DSTF(136) 1B - Single Pole Normally Closed 208VAC 2VA 270.4 15 AMP 11000 x (1�10%) 166.4 41
HF105F1220A61DSTF HONGFA PCB POWER RELAY 220AC 1NC HF105F-1/220A6-1DSTF(136) 1B - Single Pole Normally Closed 220VAC 2VA 286 15 AMP 13490 x (1�10%) 176 44
HF105F1240A61DSTF HONGFA PCB POWER RELAY 240AC 1NC HF105F-1/240A6-1DSTF(136) 1B - Single Pole Normally Closed 240VAC 2VA 286 15 AMP 13490 x (1�10%) 192 48
HF105F1277A61DSTF HONGFA PCB POWER RELAY 277AC 1NC HF105F-1/277A6-1DSTF(136) 1B - Single Pole Normally Closed 277VAC 2VA 360.1 15 AMP 15000 x (1�10%) 220 54
