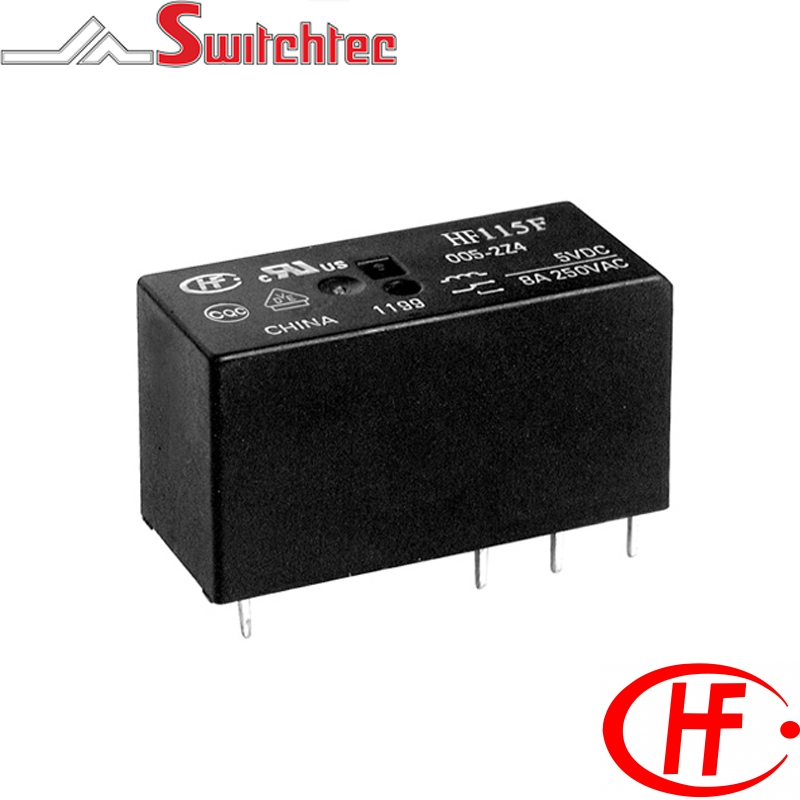

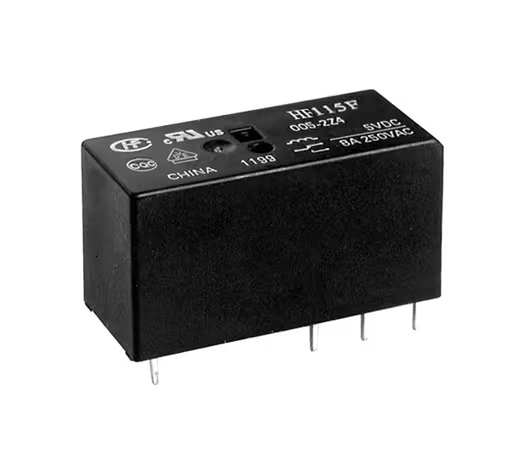

12 Amp Normally Open 5mm Pinning - 1 Form A

12 Amp Normally Open 5mm Pinning - 1 Form A

  • 12 Amp switching capacity
  • 400mW Coil
  • 5KVA dielectric strength (between coil and contacts)
  • 1 Form A contact
  • Creepage distance 10mm
  • DC Coil Version
  • Contact materials AgSnO2 as standard
  • Available on request AgCdO, AgNi, AgCdO+Au plated, AgNi + Au plated contacts
  • RoHS compliant
  • Fully sealed
  • Compliant with VDE 0435/0631/0700
  • Approvals FIMKO, VDE UL & CUL
  • P.C. & DIN rail sockets available
  • Insulation Class F



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF115F0051HS2AF HONGFA PCB POWER RELAY 5DC 12A 1NO HF115F/005-1HS2AF 1A - Single Pole Normally Open 5VDC 400mW 7.5 12 AMP 3.5 0.5 62 x (1�10%)
HF115F0061HS2AF HONGFA PCB POWER RELAY 6DC 12A 1NO HF115F/006-1HS2AF 1A - Single Pole Normally Open 6VDC 400mW 9 12 AMP 4.2 0.6 90 x (1�10%)
HF115F0091HS2AF HONGFA PCB POWER RELAY 9DC 12A 1NO HF115F/009-1HS2AF 1A - Single Pole Normally Open 9VDC 400mW 13.5 12 AMP 6.3 0.9 202 x (1�10%)
HF115F0121HS2AF HONGFA PCB POWER RELAY 12DC 12A 1NO HF115F/012-1HS2AF 1A - Single Pole Normally Open 12VDC 400mW 18 12 AMP 8.4 1.2 360 x (1�10%)
HF115F0181HS2AF HONGFA PCB POWER RELAY 18DC 12A 1NO HF115F/018-1HS2AF 1A - Single Pole Normally Open 18VDC 400mW 27 12 AMP 12.6 1.8 810 x (1�10%)
HF115F0241HS2AF HONGFA PCB POWER RELAY 24DC 12A 1NO HF115F/024-1HS2AF 1A - Single Pole Normally Open 24VDC 400mW 36 12 AMP 16.8 2.4 1440 x (1�15%)
HF115F0481HS2AF HONGFA PCB POWER RELAY 48DC 12A 1NO HF115F/048-1HS2AF 1A - Single Pole Normally Open 48VDC 400mW 72 12 AMP 33.6 4.8 5760 x (1�15%)
HF115F0601HS2AF HONGFA PCB POWER RELAY 60DC 12A 1NO HF115F/060-1HS2AF 1A - Single Pole Normally Open 60VDC 400mW 90 12 AMP 42 6 7500 x (1�15%)
HF115F1101HS2AF HONGFA PCB POWER RELAY 110DC 12A 1NO HF115F/110-1HS2AF 1A - Single Pole Normally Open 110VDC 400mW 165 12 AMP 77 11 25200 x (1�10%)
