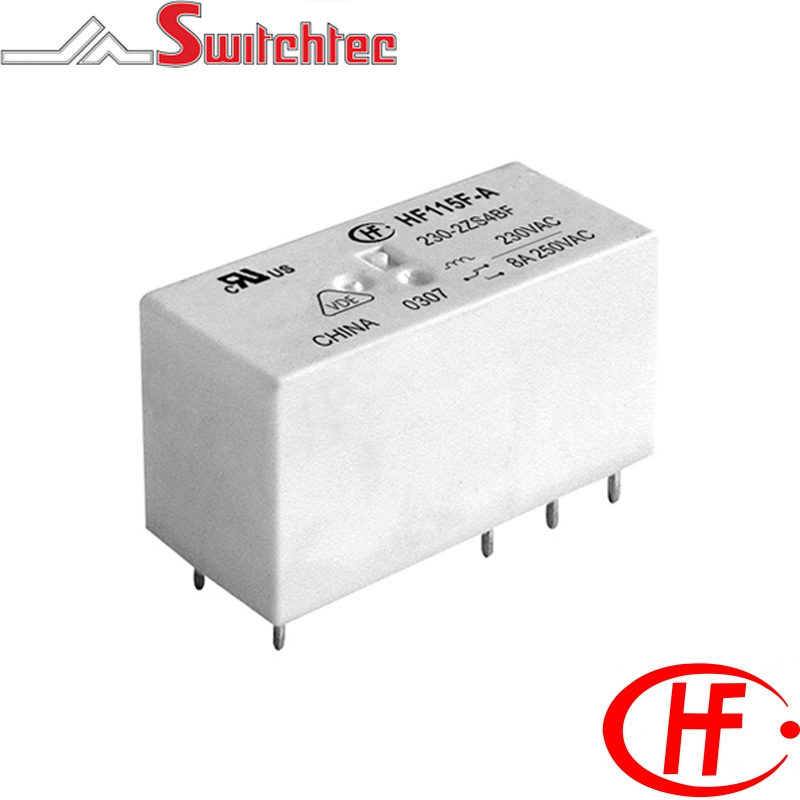

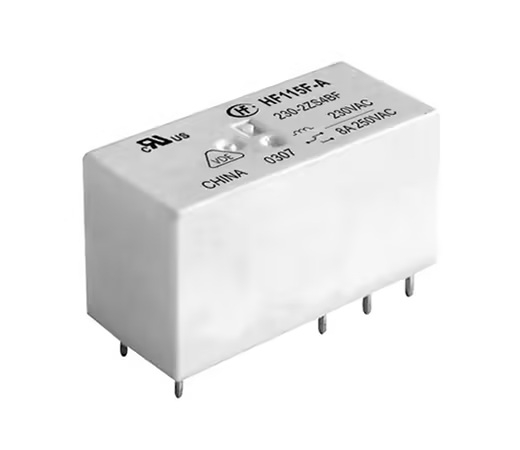

12 Amp Changeover 5mm Pinning - 1 Form C

12 Amp Changeover 5mm Pinning - 1 Form C

  • 12 Amp switching capacity
  • 0.75VA Coil
  • 5KVA dielectric strength (between coil and contacts)
  • 1 Form C Contact
  • Creepage distance 10mm
  • AC Coil Version
  • Contact materials AgSnO2 as standard
  • Available on request AgCdO, AgNi, AgCdO+Au plated, AgNi + Au plated contacts
  • RoHS compliant
  • Fully sealed
  • Compliant with VDE 0435/0631/0700
  • Approvals VDE UL & CUR
  • P.C. & DIN rail sockets available
  • Insulation Class F



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VAC Maximum Rated Switching Current Coil ? � 10% Pick Up Max VAC Drop Out Max VAC Price
HF115FA0241ZS2AF HONGFA PCB POWER RELAY 24VAC 12A 1CO HF115F-A/024-1ZS2AF 1C - Single Pole Changeover 24VAC 0.75VA 31.6 12 AMP 350 x (1�10%) 18 3.6
HF115FA1151ZS2AF HONGFA PCB POWER RELAY 115VAC 12A 1CO HF115F-A/115-1ZS2AF 1C - Single Pole Changeover 115VAC 0.75VA 6.6 12 AMP 8110 x (1�15%) 86.3 17.3
HF115FA2301ZS2AF HONGFA PCB POWER RELAY 230VAC 12A 1CO HF115F-A/230-1ZS2AF 1C - Single Pole Changeover 230VAC 0.75VA 3.2 12 AMP 32500 x (1�15%) 172.5 34.5
