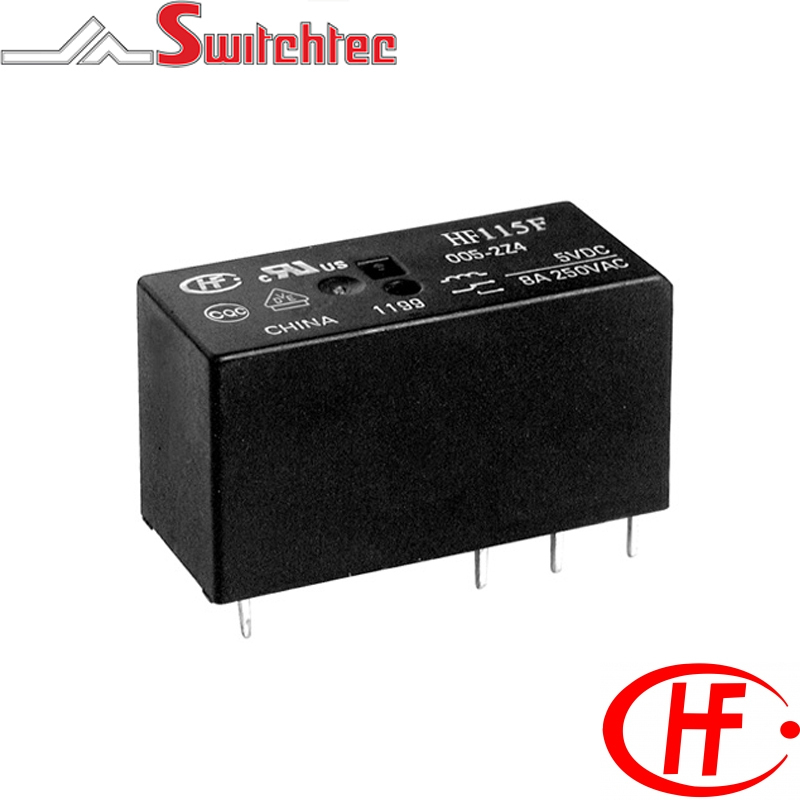

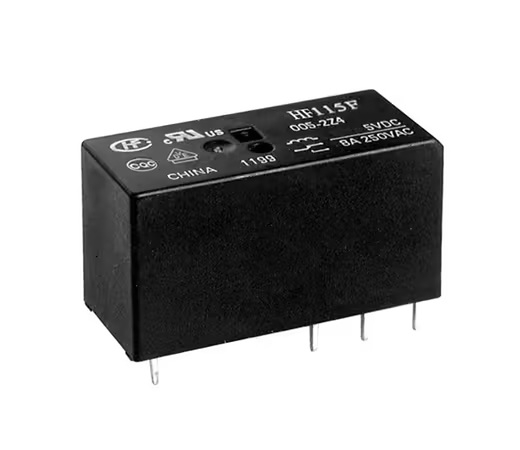

12 Amp Changeover 5mm Pinning - 1 Form C

12 Amp Changeover 5mm Pinning - 1 Form C

  • 12 Amp switching capacity
  • 400mW Coil
  • 5KVA dielectric strength (between coil and contacts)
  • 1 Form C contact
  • Creepage distance 10mm
  • DC Coil Version
  • Contact materials AgSnO2 as standard
  • Available on request AgCdO, AgNi, AgCdO+Au plated, AgNi + Au plated contacts
  • RoHS compliant
  • Fully sealed
  • Compliant with VDE 0435/0631/0700
  • Approvals FIMKO, VDE UL & CUR
  • P.C. & DIN rail sockets available
  • Insulation Class F



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF115F0051ZS2AF HONGFA PCB POWER RELAY 5VDC 12A 1CO HF115F/005-1ZS2AF 1C - Single Pole Changeover 5VDC 400mW 7.5 12 AMP 3.5 0.5 62 x (1�10%)
HF115F0061ZS2AF HONGFA PCB POWER RELAY 6VDC 12A 1CO HF115F/006-1ZS2AF 1C - Single Pole Changeover 6VDC 400mW 9 12 AMP 4.2 0.6 90 x (1�10%)
HF115F0091ZS2AF HONGFA PCB POWER RELAY 9VDC 12A 1CO HF115F/009-1ZS2AF 1C - Single Pole Changeover 9VDC 400mW 13.5 12 AMP 6.3 0.9 202 x (1�10%)
HF115F0121ZS2AF HONGFA PCB POWER RELAY 12VDC 12A 1CO HF115F/012-1ZS2AF 1C - Single Pole Changeover 12VDC 400mW 18 12 AMP 8.4 1.2 360 x (1�10%)
HF115F0181ZS2AF HONGFA PCB POWER RELAY 18VDC 12A 1CO HF115F/018-1ZS2AF 1C - Single Pole Changeover 18VDC 400mW 27 12 AMP 12.6 1.8 810 x (1�10%)
HF115F0241ZS2AF HONGFA PCB POWER RELAY 24VDC 12A 1CO HF115F/024-1ZS2AF 1C - Single Pole Changeover 24VDC 400mW 36 12 AMP 16.8 2.4 1440 x (1�15%)
HF115F0481ZS2AF HONGFA PCB POWER RELAY 48VDC 12A 1CO HF115F/048-1ZS2AF 1C - Single Pole Changeover 48VDC 400mW 72 12 AMP 33.6 4.8 5760 x (1�15%)
HF115F0601ZS2AF HONGFA PCB POWER RELAY 60VDC 12A 1CO HF115F/060-1ZS2AF 1C - Single Pole Changeover 60VDC 400mW 90 12 AMP 42 6 7500 x (1�15%)
HF115F1101ZS2AF HONGFA PCB POWER RELAY 110DC 12A 1CO HF115F/110-1ZS2AF 1C - Single Pole Changeover 110VDC 400mW 165 12 AMP 77 11 25200 x (1�10%)
