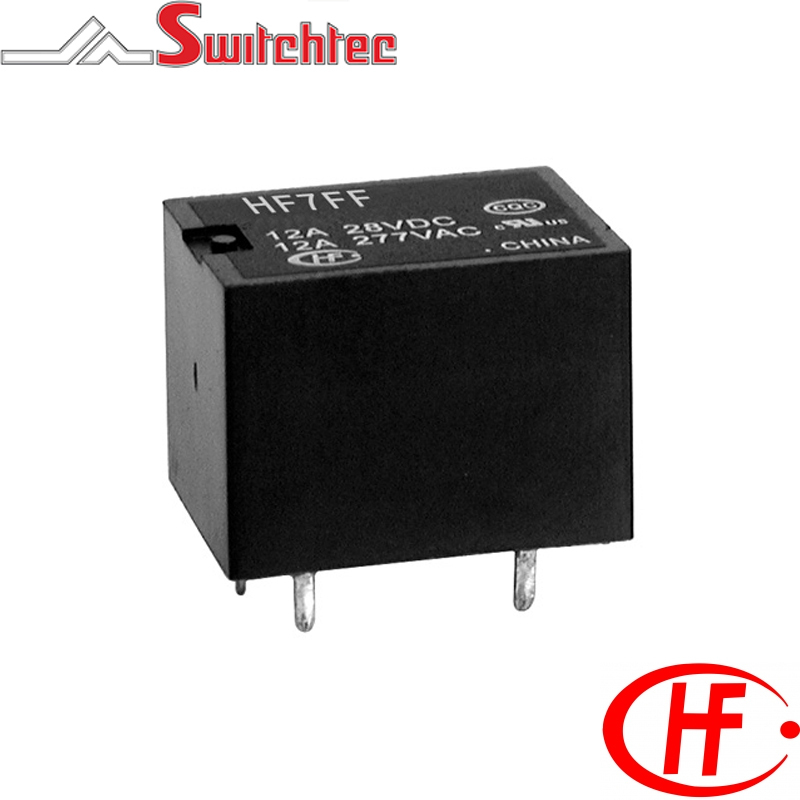

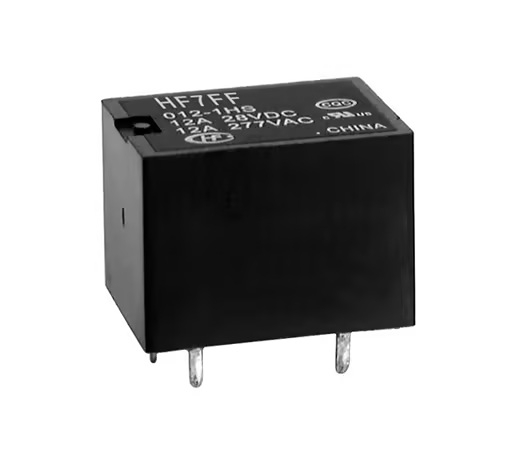

12 Amp 1 Pole Normally Open Relay

12 Amp 1 Pole Normally Open Relay

  • 12A 250VAC/30VDC contact rating
  • 1 Form A configuration
  • Fully sealed
  • 360mW Coil & 510mW coils
  • Contact Materials AgSn02
  • RoHS compliant
  • Approvals UL & CUL
  • Class F insulation as standard



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF7FF0031HSTF HONGFA PCB CUBE RELAY 3VDC 12A 1NO HF7FF/003-1HSTF(038) 1A - Single Pole Normally Open 3VDC 360mW 3.6 10 AMP 2.4 0.3 25 x (1�10%)
HF7FF0051HSTF HONGFA PCB CUBE RELAY 5VDC 12A 1NO HF7FF/003-1HSTF(038) 1A - Single Pole Normally Open 5VDC 360mW 6 10 AMP 4 0.5 70 x (1�10%)
HF7FF0061HSTF HONGFA PCB CUBE RELAY 6VDC 12A 1NO HF7FF/006-1HSTF(038) 1A - Single Pole Normally Open 6VDC 360mW 7.2 10 AMP 4.8 0.6 100 x (1�10%)
HF7FF0091HSTF HONGFA PCB CUBE RELAY 9VDC 12A 1NO HF7FF/009-1HSTF(038) 1A - Single Pole Normally Open 9VDC 360mW 10.8 10 AMP 7.2 0.9 225 x (1�10%)
HF7FF0121HSTF HONGFA PCB CUBE RELAY 12VDC 12A 1NO HF7FF/012-1HSTF(038) 1A - Single Pole Normally Open 12VDC 360mW 14.4 10 AMP 9.6 1.2 400 x (1�10%)
HF7FF0181HSTF HONGFA PCB CUBE RELAY 18VDC 12A 1NO HF7FF/018-1HSTF(038) 1A - Single Pole Normally Open 18VDC 360mW 21.6 10 AMP 14.4 1.8 900 x (1�10%)
HF7FF0241HSTF HONGFA PCB CUBE RELAY 24VDC 12A 1NO HF7FF/024-1HSTF(038) 1A - Single Pole Normally Open 24VDC 360mW 28.8 10 AMP 19.2 2.4 1600 x (1�10%)
HF7FF0481HSTF HONGFA PCB CUBE RELAY 48VDC 12A 1NO HF7FF/048-1HSTF(038) 1A - Single Pole Normally Open 48VDC 510mW 57.6 10 AMP 38.4 4.8 4500 x (1�10%)
