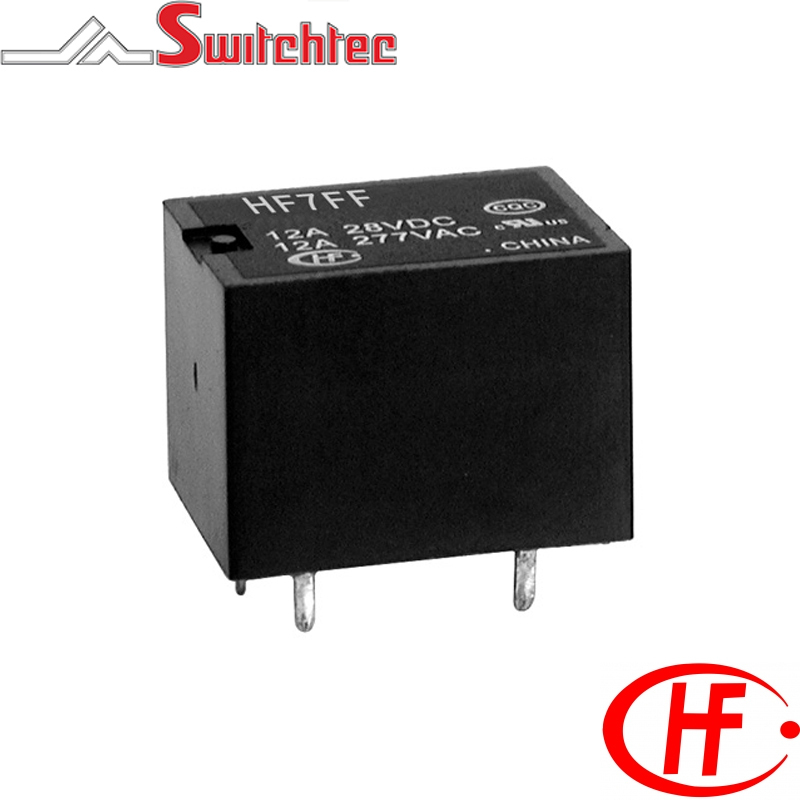

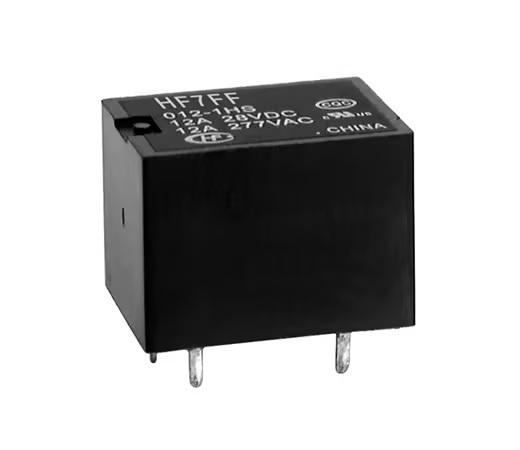

12 Amp 1 Pole Changeover Relay

12 Amp 1 Pole Changeover Relay

  • 12A 250VAC/30VDC contact rating
  • 1 Form C configuration
  • Fully sealed
  • 360mW Coil & 510mW coils
  • Contact Materials AgSn02
  • RoHS compliant
  • Approvals UL & CUL
  • Class F insulation as standard



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF7FF0031ZTSF HONGFA PCB CUBE RELAY 3VDC 12A 1CO HF7FF/003-1ZTSF(038) 1C - Single Pole Changeover 3VDC 360mW 3.6 10 AMP 2.4 0.3 25 x (1�10%)
HF7FF0051ZTSF HONGFA PCB CUBE RELAY 5VDC 12A 1CO HF7FF/005-1ZTSF(038) 1C - Single Pole Changeover 5VDC 360mW 6 10 AMP 4 0.5 70 x (1�10%)
HF7FF0061ZTSF HONGFA PCB CUBE RELAY 6VDC 12A 1CO HF7FF/006-1ZTSF(038) 1C - Single Pole Changeover 6VDC 360mW 7.2 10 AMP 4.8 0.6 100 x (1�10%)
HF7FF0091ZTSF HONGFA PCB CUBE RELAY 9VDC 12A 1CO HF7FF/009-1ZTSF(038) 1C - Single Pole Changeover 9VDC 360mW 10.8 10 AMP 7.2 0.9 225 x (1�10%)
HF7FF0121ZTSF HONGFA PCB CUBE RELAY 12VDC 12A 1CO HF7FF/012-1ZTSF(038) 1C - Single Pole Changeover 12VDC 360mW 14.4 10 AMP 9.6 1.2 400 x (1�10%)
HF7FF0181ZTSF HONGFA PCB CUBE RELAY 18VDC 12A 1CO HF7FF/018-1ZTSF(038) 1C - Single Pole Changeover 18VDC 360mW 21.6 10 AMP 14.4 1.8 900 x (1�10%)
HF7FF0241ZTSF HONGFA PCB CUBE RELAY 24VDC 12A 1CO HF7FF/024-1ZTSF(038) 1C - Single Pole Changeover 24VDC 360mW 28.8 10 AMP 19.2 2.4 1600 x (1�10%)
HF7FF0481ZTSF HONGFA PCB CUBE RELAY 48VDC 12A 1CO HF7FF/048-1ZTSF(038) 1C - Single Pole Changeover 48VDC 510mW 57.6 10 AMP 38.4 4.8 4500 x (1�10%)
