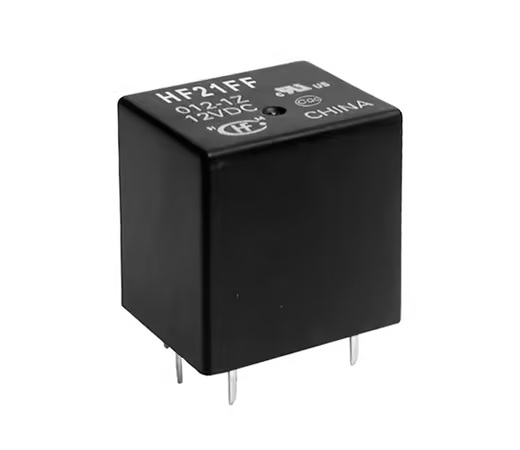

15 Amp 1 Pole Normally Closed Relay

15 Amp 1 Pole Normally Closed Relay

  • 15 amp 1 Form B
  • Fully sealed
  • Wash Tight
  • 360mW & 530mW coils
  • Contact Material AgSnO2
  • RoHS Complaint
  • Approvals UL/CUL & TUV



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF21FF0051DSTF HONGFA PCB CUBE RELAY 5VDC 15A SPNC HF21FF/005-1DSTF 1B - Single Pole Normally Closed 5VDC 360mW 6.5 15 AMP 3.8 0.5 70 x (1�10%)
HF21FF0061DSTF HONGFA PCB CUBE RELAY 6VDC 15A SPNC HF21FF/005-1DSTF 1B - Single Pole Normally Closed 6VDC 360mW 7.8 15 AMP 4.5 0.6 100 x (1�10%)
HF21FF0091DSTF HONGFA PCB CUBE RELAY 9VDC 15A SPNC HF21FF/009-1DSTF 1B - Single Pole Normally Closed 9VDC 360mW 11.7 15 AMP 6.8 0.9 225 x (1�10%)
HF21FF0121DSTF HONGFA PCB CUBE RELAY 12VDC 15A SPNC HF21FF/012-1DSTF 1B - Single Pole Normally Closed 12VDC 360mW 15.6 15 AMP 9 1.2 400 x (1�10%)
HF21FF0181DSTF HONGFA PCB CUBE RELAY 18VDC 15A SPNC HF21FF/018-1DSTF 1B - Single Pole Normally Closed 18VDC 360mW 23.4 15 AMP 13.5 1.8 900 x (1�10%)
HF21FF0241DSTF HONGFA PCB CUBE RELAY 24VDC 15A SPNC HF21FF/024-1DSTF 1B - Single Pole Normally Closed 24VDC 360mW 31.2 15 AMP 18 2.4 1600 x (1�15%)
HF21FF0481DSTF HONGFA PCB CUBE RELAY 48VDC 15A SPNC HF21FF/048-1DSTF 1B - Single Pole Normally Closed 48VDC 530mW 62.4 15 AMP 36 4.8 4500 x (1�15%)
