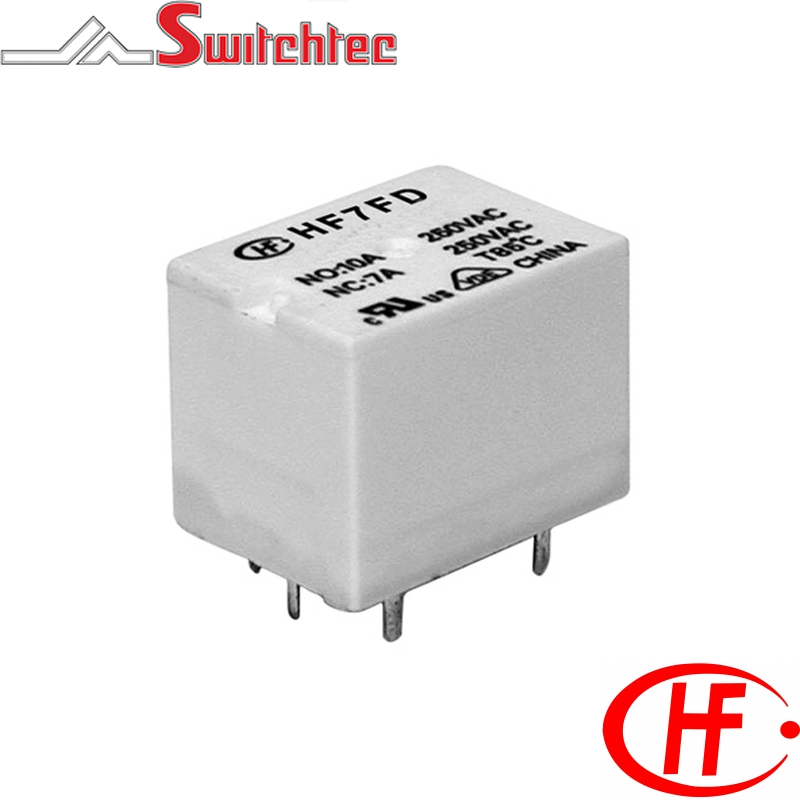

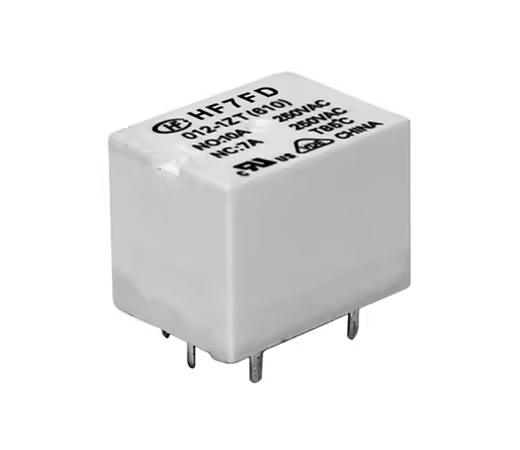

10 Amp 1 Pole Changeover Relay

10 Amp 1 Pole Changeover Relay

  • 10A 250VAC contact rating
  • 1 pole Changeover Form C
  • Fully sealed as standard
  • Wash T ight and flux proofed types available
  • 2 KV dielectric strength between coil & contacts
  • Contact Materials AgSn02 & AgCdO
  • RoHS compliant
  • UL94, V-0, CT1250 flammability class
  • Approvals UL/CSA & VDE 0631/0700
  • Class F insulation as standard



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF7FD0031ZSTF HONGFA PCB CUBE RELAY 3VDC 10A SPDT HF7FD/003-1ZSTF 1C - Single Pole Changeover 3VDC 360mW 3.9 10 AMP 2.25 0.3 25 x (1�10%)
HF7FD0051ZSTF HONGFA PCB CUBE RELAY 5VDC 10A SPDT HF7FD/005-1ZSTF 1C - Single Pole Changeover 5VDC 360mW 6.5 10 AMP 3.75 0.5 70 x (1�10%)
HF7FD0061ZSTF HONGFA PCB CUBE RELAY 6VVDC 10A SPDT HF7FD/006-1ZSTF 1C - Single Pole Changeover 6VDC 360mW 7.8 10 AMP 4.5 0.6 100 x (1�10%)
HF7FD0091ZSTF HONGFA PCB CUBE RELAY 9VDC 10A SPDT HF7FD/009-1ZSTF 1C - Single Pole Changeover 9VDC 360mW 11.7 10 AMP 6.75 0.9 225 x (1�10%)
HF7FD0121ZSTF HONGFA PCB CUBE RELAY 12VDC 10A SPDT HF7FD/012-1ZSTF 1C - Single Pole Changeover 12VDC 360mW 15.6 10 AMP 9 1.2 400 x (1�10%)
HF7FD0181ZSTF HONGFA PCB CUBE RELAY 18VDC 10A SPDT HF7FD/018-1ZSTF 1C - Single Pole Changeover 18VDC 360mW 23.4 10 AMP 13.5 1.8 900 x (1�10%)
HF7FD0241ZSTF HONGFA PCB CUBE RELAY 24VDC 10A SPDT HF7FD/024-1ZSTF 1C - Single Pole Changeover 24VDC 360mW 31.2 10 AMP 18 2.4 1600 x (1�15%)
HF7FD0481ZST HONGFA PCB CUBE RELAY 48VDC 10A SPDT HF7FD/048-1ZSTF 1C - Single Pole Changeover 48VDC 360mW 62.4 10 AMP 36 4.8 6400 x (1�15%)
