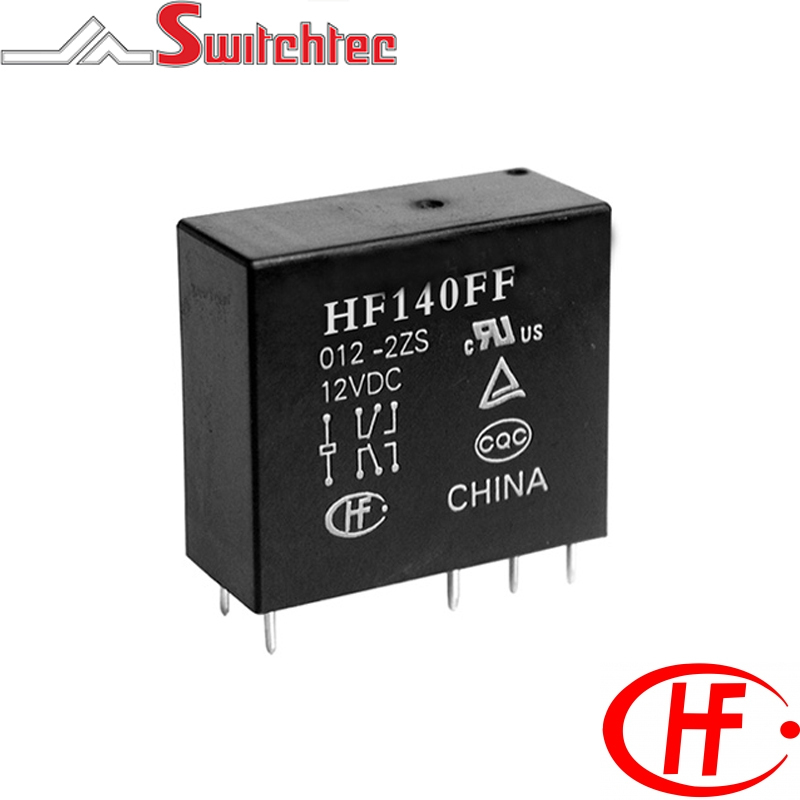

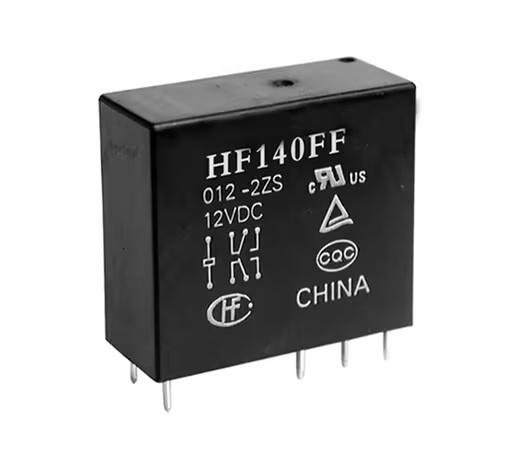

10 Amp 2 Pole Changeover - 2 Form C

Descriptions

10 Amp switching capacity
2 Form C contact
5KV dielectric strength (between coil and contacts)
Wash tight
Contact materials AgSnO2. Available on request AgCdO & AgNi
RoHS compliant
Approvals UL/CUL, TUV and COC
PC & Din sockets available

Specifications

No detailed specifications are available for this product.

Downloads

There are no downloads for this product.

Code	Description	Contact Arrangement	Coil Voltage	Coil Power	Max VDC	Maximum Rated Switching Current	Pick Up Max VDC	Drop Out Max VDC	Price
HF140FF0062ZTF	HONGFA PCB POWER RELAY 6VDC 10A 2CO HF140FF/006-2ZTF(611)	2 Pole Change Over	6VDC	1400mW	7.8	10 AMP	4.5	0.6	Please login to see prices.
HF140FF0122ZTF	HONGFA PCB POWER RELAY 12VDC 10A 2CO HF140FF/012-2ZTF(611)	2 Pole Change Over	12VDC	1400mW	15.6	10 AMP	9	1.2	Please login to see prices.
HF140FF0242ZTF	HONGFA PCB POWER RELAY 24VDC 10A 2CO HF140FF/024-2ZTF(611)	2 Pole Change Over	24VDC	1400mW	31.2	10 AMP	18	2.4	Please login to see prices.
