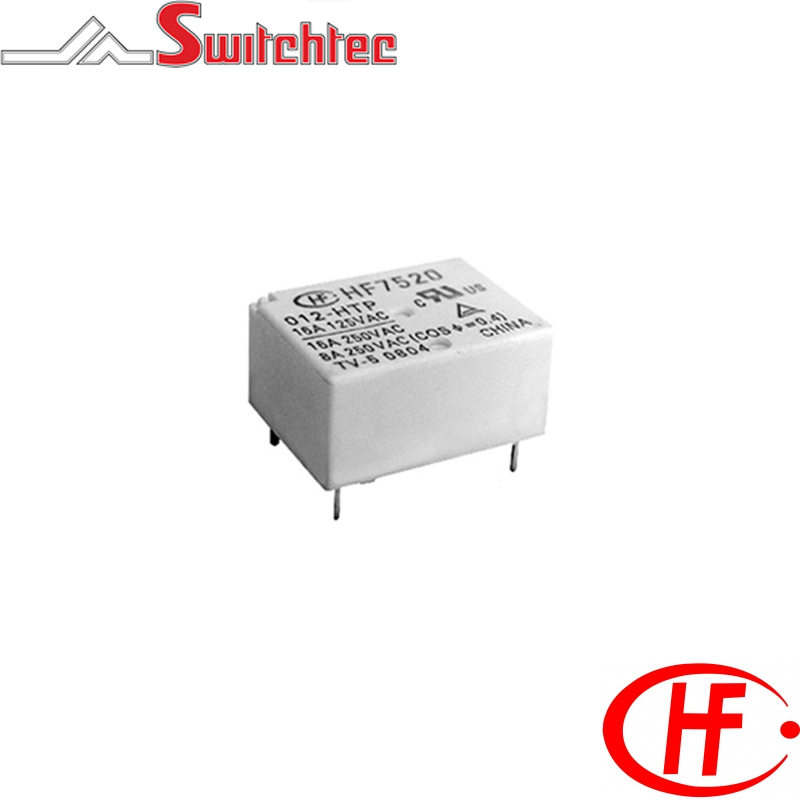

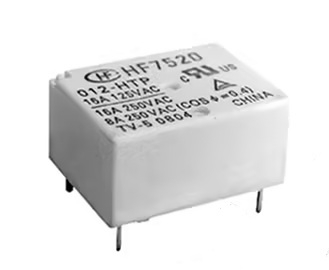

10 Amp 1 Pole Normally Open Relay (Standard)

10 Amp 1 Pole Normally Open Relay (Standard)

  • 10 Amp switching capacity
  • 1 Form A contact
  • 200mW Coil
  • Plastic sealed and Flux proofed types (with vent hole) available
  • RoHS compliant
  • Approvals UL/CUL, TUV and CQC



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF7520005HST HONGFA PCB POWER RELAY 5VDC 10A 1NO HF7520/005-HST 1A - Single Pole Normally Open 5VDC 200mW 6.5 16 AMP 4 0.5 125 x (1�10%)
HF7520006HST HONGFA PCB POWER RELAY 6VDC 10A 1CO HF7520/006-HST 1A - Single Pole Normally Open 6VDC 200mW 7.8 16 AMP 4.8 0.6 180 x (1�10%)
HF7520009HST HONGFA PCB POWER RELAY 9VDC 16A 1NO HF7520/009-HST 1A - Single Pole Normally Open 9VDC 200mW 11.7 16 AMP 7.2 0.9 405 x (1�10%)
HF7520012HST HONGFA PCB POWER RELAY 12VDC 16A 1NO HF7520/012-HST 1A - Single Pole Normally Open 12VDC 200mW 15.6 16 AMP 9.6 1.2 720 x (1�10%)
HF7520018HST HONGFA PCB POWER RELAY 18VDC 16A 1NO HF7520/018-HST 1A - Single Pole Normally Open 18VDC 200mW 23.4 16 AMP 14.4 1.8 1620 x (1�10%)
HF7520024HST HONGFA PCB POWER RELAY 24VDC 16A 1NO HF7520/024-HST 1A - Single Pole Normally Open 24VDC 200mW 31.2 16 AMP 19.2 2.4 2880 x (1�10%)
HF7520048HST HONGFA PCB POWER RELAY 48VDC 16A 1NO HF7520/048-HST 1A - Single Pole Normally Open 48VDC 200mW 62.4 16 AMP 38.4 4.8 11520 x (1�10%)
