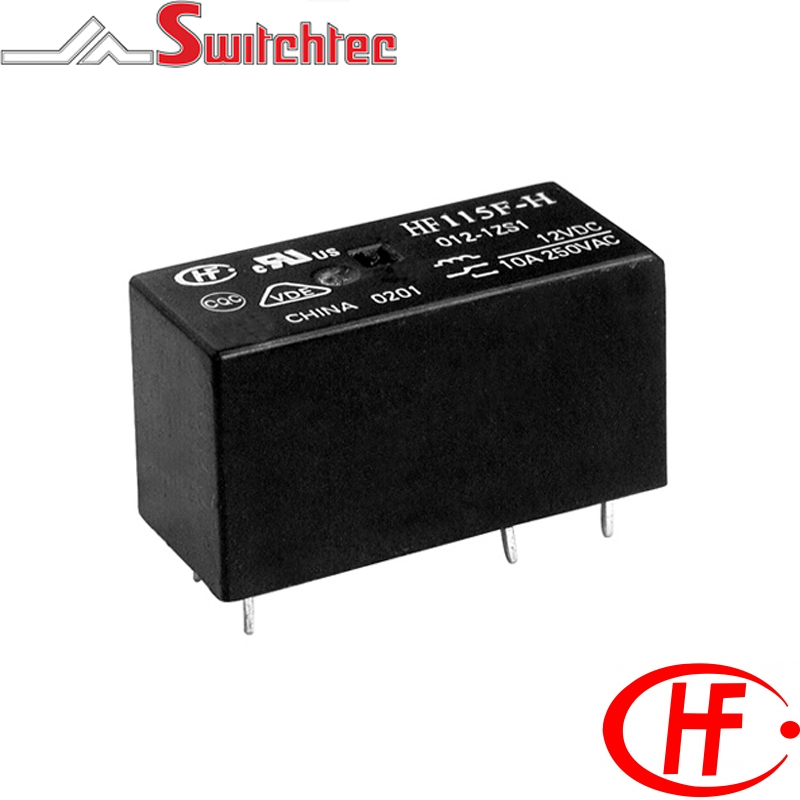

10 Amp 1 Pole Normally Closed 3.5mm Pinning - 1 Form B

10 Amp 1 Pole Normally Closed 3.5mm Pinning - 1 Form B

  • 10 Amp switching capacity
  • High sensitivity: 0.25W
  • 5KV dielectric strength (between coil and contacts)
  • 1 Form B contact#
  • Creepage distance 10mm
  • Contact materials AgSnO2 as standard
  • Available on request AgCdO, AgNi, AgCdO+Au plated contacts
  • RoHS compliant
  • Sealed as standard
  • Compliant with VDE 0435/0631/0700
  • Approvals VDE UL & CUL
  • Relays compliant with IEC 60335-1 also available
  • PC & Din sockets available



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Maximum Rated Switching Current Price
HF115FH0051DS1A HONGFA PCB POWER RELAY 5VDC 10A 1NC HF115F-H/005-1DS1A 1B - Single Pole Normally Closed 5VDC 10 AMP
HF115FH0061DS1A HONGFA PCB POWER RELAY 6VDC 10A 1NC HF115F-H/006-1DS1A 1B - Single Pole Normally Closed 6VDC 10 AMP
HF115FH0091DS1A HONGFA PCB POWER RELAY 9VDC 10A 1NC HF115F-H/009-1DS1A 1B - Single Pole Normally Closed 9VDC 10 AMP
HF115FH0121DS1A HONGFA PCB POWER RELAY 12VDC 10A 1NC HF115F-H/012-1DS1A 1B - Single Pole Normally Closed 12VDC 10 AMP
HF115FH0181DS1A HONGFA PCB POWER RELAY 18VDC 10A 1NC HF115F-H/018-1DS1A 1B - Single Pole Normally Closed 18VDC 10 AMP
HF115FH0241DS1A HONGFA PCB POWER RELAY 24VDC 10A 1NC HF115F-H/024-1DS1A 1B - Single Pole Normally Closed 24VDC 10 AMP
HF115FH0481DS1A HONGFA PCB POWER RELAY 48VDC 10A 1NC HF115F-H/048-1DS1A 1B - Single Pole Normally Closed 48VDC 10 AMP
HF115FH0601DS1A HONGFA PCB POWER RELAY 60VDC 10A 1NC HF115F-H/060-1DS1A 1B - Single Pole Normally Closed 60VDC 10 AMP
