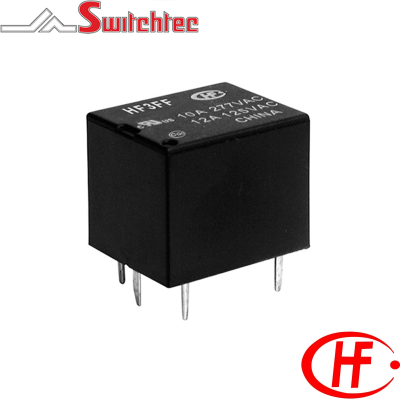

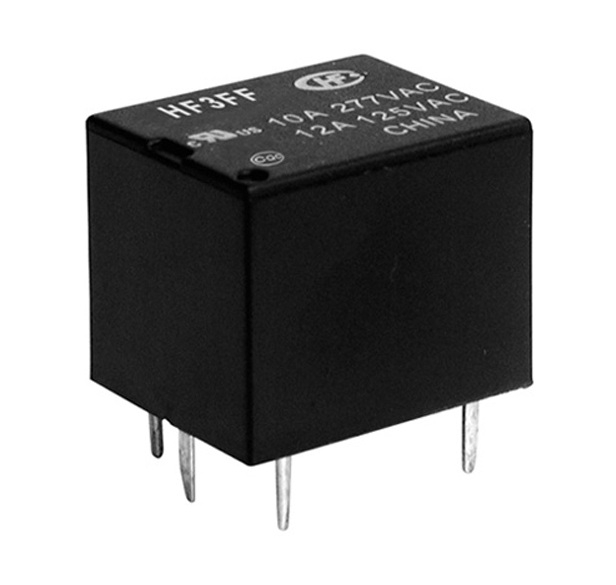

10 Amp 1 Pole Changeover Relay

10 Amp 1 Pole Changeover Relay

  • 10A 277VAC/28VDC contact rating
  • 1 Form C configuration
  • Fully sealed
  • Wash Tight and flux proofed types available
  • 360mW Coil
  • Contact Materials AgSn02, AgCdO also available
  • RoHS compliant
  • Class F insulation as standard
  • Approvals UL & CUL, TUV



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF3FF0051ZSTF HONGFA PCB CUBE RELAY 5VDC 10A SPDT HF3FF/005-1ZSTF 1C - Single Pole Changeover 5VDC 360mW 6.5 10 AMP 3.8 0.5 70 x (1�10%)
HF3FF0061ZSTF HONGFA PCB CUBE RELAY 6VDC 10A SPDT HF3FF/006-1ZSTF 1C - Single Pole Changeover 6VDC 360mW 7.8 10 AMP 4.5 0.6 100 x (1�10%)
HF3FF0091ZSTF HONGFA PCB CUBE RELAY 9VDC 10A SPDT HF3FF/009-1ZSTF 1C - Single Pole Changeover 9VDC 360mW 11.7 10 AMP 6.8 0.9 225 x (1�10%)
HF3FF0121ZSTF HONGFA PCB CUBE RELAY 12DC 10A SPDT HF3FF/012-1ZSTF 1C - Single Pole Changeover 12VDC 360mW 15.6 10 AMP 9 1.2 400 x (1�10%)
HF3FF0181ZSTF HONGFA PCB CUBE RELAY 18DC 10A SPDT HF3FF/018-1ZSTF 1C - Single Pole Changeover 18VDC 360mW 23.4 10 AMP 13.5 1.8 900 x (1�10%)
HF3FF0241ZSTF HONGFA PCB CUBE RELAY 24DC 10A SPDT HF3FF/024-1ZSTF 1C - Single Pole Changeover 24VDC 360mW 31.2 10 AMP 18 2.4 1600 x (1�10%)
HF3FF0481ZSTF HONGFA PCB CUBE RELAY 48VDC 10A SPDT HF3FF/048-1ZSTF 1C - Single Pole Changeover 48VDC 510mW 62.4 10 AMP 36 4.8 4500 x (1�10%)
