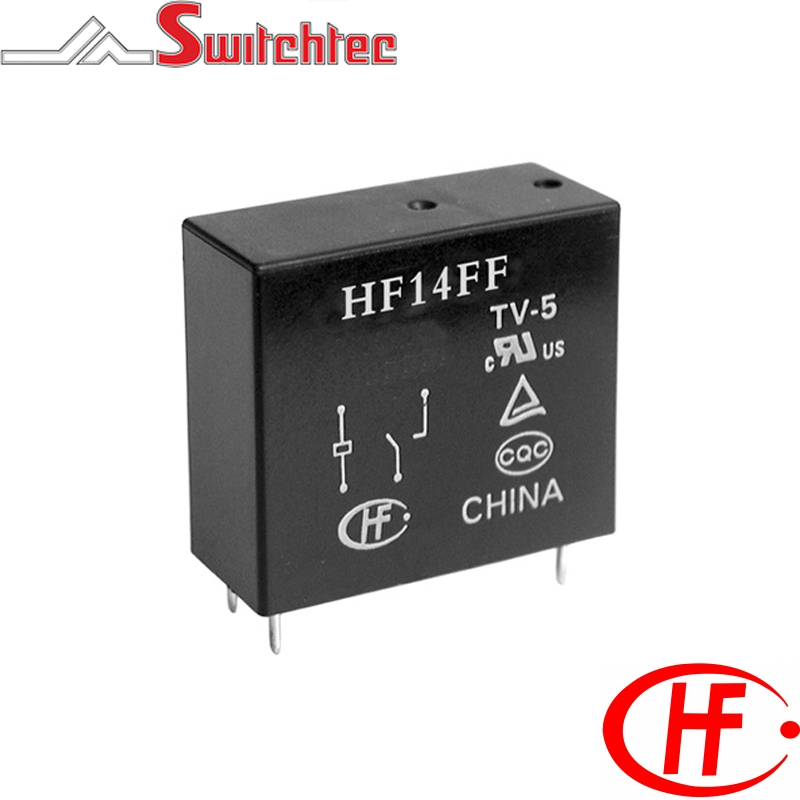

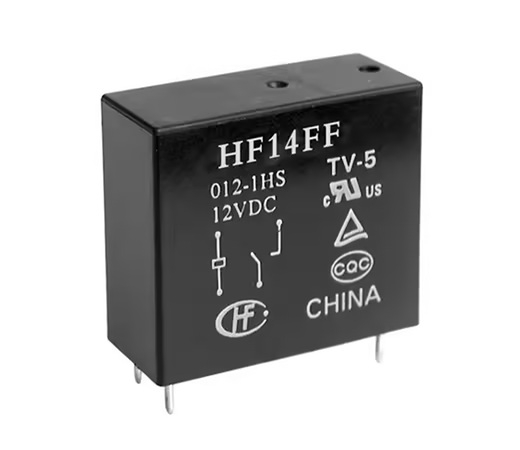

10 Amp 1 Pole Changeover - 1 Form C - Plastic Sealed

10 Amp 1 Pole Changeover - 1 Form C - Plastic Sealed

  • 10A 277VAC/30VDC switching capacity
  • 1 Form C configuration
  • Fully sealed
  • 530mW Coil
  • Contact Material AgSnO2. AgCdO also available
  • RoHS Compliant
  • Approvals UL & CUL, TUV-5
  • PC & DIN Rail Plug In sockets available



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF14FF0031ZSTF HONGFA PCB POWER RELAY 3VDC HF14FF/003-1ZSTF BLACK CASE 1C - Single Pole Changeover 3VDC 530mW 4.2 10 AMP 2.25 0.3 17 x (1�10%)
HF14FF0051ZSTF HONGFA PCB POWER RELAY 5VDC HF14FF/005-1ZSTF BLACK CASE 1C - Single Pole Changeover 5VDC 530mW 7 10 AMP 3.75 0.5 47 x (1�10%)
HF14FF0061ZSTF HONGFA PCB POWER RELAY 6VDC HF14FF/006-1ZTSF BLACK CASE 1C - Single Pole Changeover 6VDC 530mW 8.4 10 AMP 4.5 0.6 68 x (1�10%)
HF14FF0091ZSTF HONGFA PCB POWER RELAY 9VDC HF14FF/009-1ZSTF BLACK CASE 1C - Single Pole Changeover 9VDC 530mW 12.6 10 AMP 6.75 0.9 160 x (1�10%)
HF14FF0121ZSTF HONGFA PCB POWER RELAY 12VDC HF14FF/012-1ZSTF BLACK CASE 1C - Single Pole Changeover 12VDC 530mW 16.8 10 AMP 9 1.2 275 x (1�10%)
HF14FF0181ZSTF HONGFA PCB POWER RELAY 18VDC HF14FF/018-1ZSTF BLACK CASE 1C - Single Pole Changeover 18VDC 530mW 25.2 10 AMP 13.5 1.8 620 x (1�10%)
HF14FF0241ZSTF HONGFA PCB POWER RELAY 24VDC HF14FF/024-1ZSTF BLACK CASE 1C - Single Pole Changeover 24VDC 530mW 33.6 10 AMP 18 2.4 1100 x (1�10%)
HF14FF0481ZSTF HONGFA PCB POWER RELAY 48VDC HF14FF/048-1ZSTF BLACK CASE 1C - Single Pole Changeover 48VDC 530mW 67.2 10 AMP 36 4.8 4170 x (1�10%)
HF14FF0601ZSTF HONGFA PCB POWER RELAY 60VDC HF14FF/060-1ZSTF BLACK CASE 1C - Single Pole Changeover 60VDC 530mW 84 10 AMP 45 6 4170 x (1�10%)
