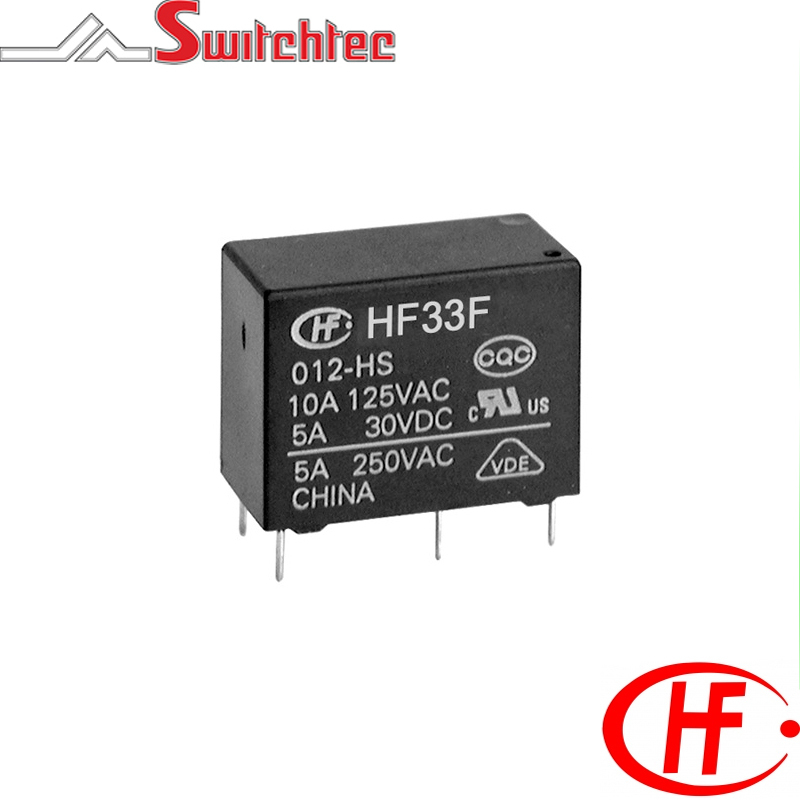

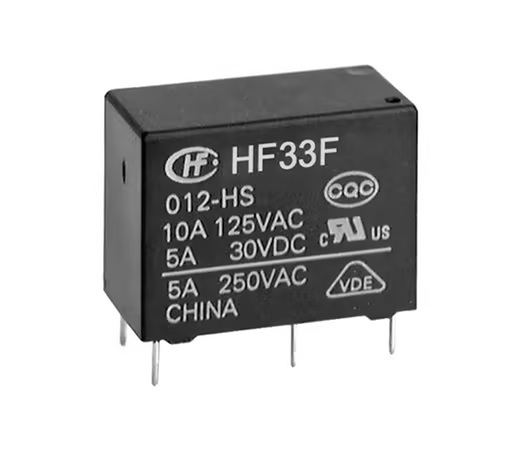

Standard Coil, Gold Plated Contacts

Standard Coil, Gold Plated Contacts

  • 10A switching capability
  • 1 Form C contact
  • Creepage distance: 8mm for 1N/O & 1N/C
  • Clearance distance: N/O type 4.5mm; N/C type 4mm
  • Wash tight
  • Contact material Agni
  • RoHS compliant
  • Safety approvals UL/CUL & VDE



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF33F003ZSTG HONGFA PCB POWER RELAY 3VDC 3A 1CO HF33F/003-ZSTG 1C - Single Pole Changeover 3VDC 450mW 3.9 3AMP 2.25 0.15 20 x (1�10%)
HF33F005ZSTG HONGFA PCB POWER RELAY 5VDC 3A 1CO HF33F/005-ZSTG 1C - Single Pole Changeover 5VDC 450mW 6.5 3AMP 3.75 0.25 55 x (1�10%)
HF33F006ZSTG HONGFA PCB POWER RELAY 6VDC 3A 1CO HF33F/006-ZSTG 1C - Single Pole Changeover 6VDC 450mW 7.8 3AMP 4.5 0.3 80 x (1�10%)
HF33F009ZSTG HONGFA PCB POWER RELAY 9VDC 3A 1CO HF33F/009-ZSTG 1C - Single Pole Changeover 9VDC 450mW 11.7 3AMP 6.75 0.45 180 x (1�10%)
HF33F012ZSTG HONGFA PCB POWER RELAY 12VDC 3A 1CO HF33F/012-ZSTG 1C - Single Pole Changeover 12VDC 450mW 15.6 3AMP 9 0.6 320 x (1�10%)
HF33F018ZSTG HONGFA PCB POWER RELAY 18VDC 3A 1CO HF33F/018-ZSTG 1C - Single Pole Changeover 18VDC 450mW 23.4 3AMP 13.5 0.9 720 x (1�10%)
HF33F024ZSTG HONGFA PCB POWER RELAY 24VDC 3A 1CO HF33F/024-ZSTG 1C - Single Pole Changeover 24VDC 450mW 31.2 3AMP 18 1.2 1280 x (1�10%)
HF33F048ZSTG HONGFA PCB POWER RELAY 48VDC 3A 1CO HF33F/048-ZSTG 1C - Single Pole Changeover 48VDC 450mW 62.4 3AMP 36 2.4 5120 x (1�10%)
