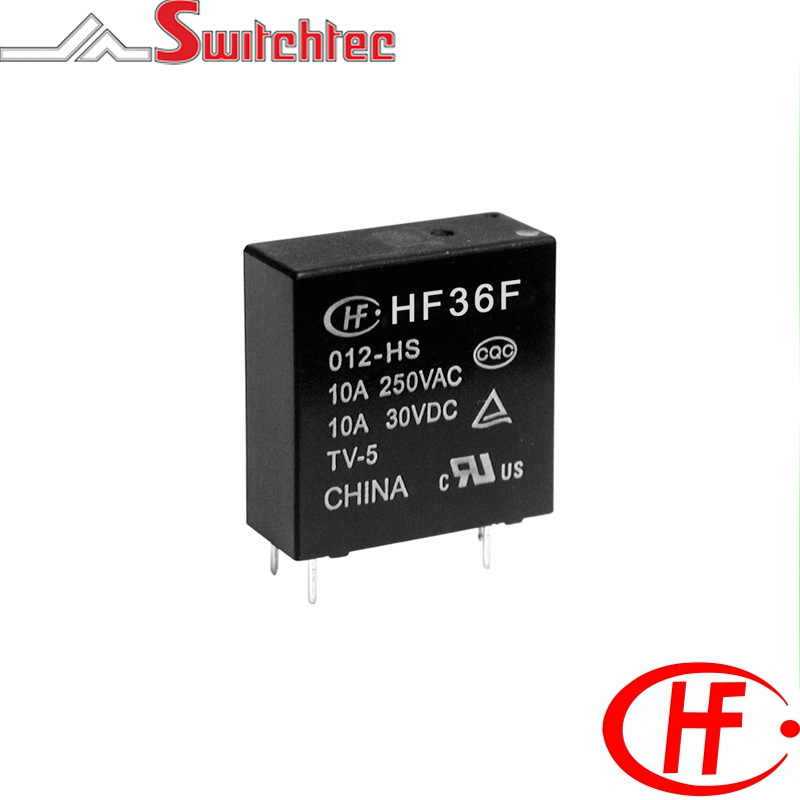

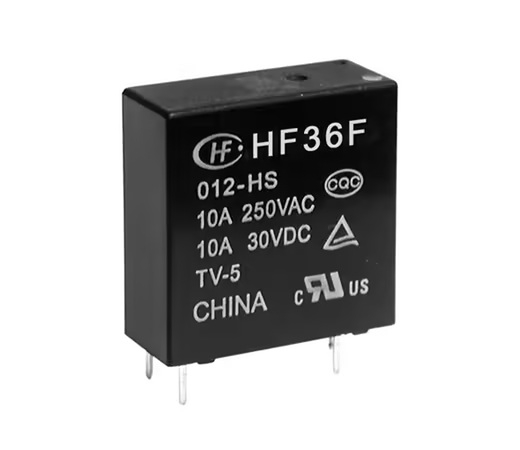

1 Pole Changeover 10 Amp - 1 Form C

1 Pole Changeover 10 Amp - 1 Form C

  • 10A switching capability
  • 1 Form C configuration
  • Wash tight
  • Contact material AgSnO2
  • RoHS compliant
  • Safety approval UL/CUL & TUV



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF36F005ZST HONGFA PCB POWER RELAY 5VDC 10A 1CO HF36F/005-ZST 1C - Single Pole Changeover 5VDC 530mW 6.5 10AMP 3.75 0.25 47 x (1�10%)
HF36F006ZST HONGFA PCB POWER RELAY 6VDC 10A 1CO HF36F/006-ZST 1C - Single Pole Changeover 6VDC 530mW 7.8 10AMP 4.5 0.3 68 x (1�10%)
HF36F009ZST HONGFA PCB POWER RELAY 9VDC 10A 1CO HF36F/009-ZST 1C - Single Pole Changeover 9VDC 530mW 11.7 10AMP 6.75 0.45 155 x (1�10%)
HF36F012ZST HONGFA PCB POWER RELAY 12VDC 10A 1CO HF36F/012-ZST 1C - Single Pole Changeover 12VDC 530mW 15.6 10AMP 9 0.6 270 x (1�10%)
HF36F018ZST HONGFA PCB POWER RELAY 18VDC 10A 1CO HF36F/018-ZST 1C - Single Pole Changeover 18VDC 530mW 23.4 10AMP 13.5 0.9 620 x (1�10%)
HF36F024ZST HONGFA PCB POWER RELAY 24VDC 10A 1CO HF36F/024-ZST 1C - Single Pole Changeover 24VDC 530mW 31.2 10AMP 18 1.2 1080 x (1�10%)
HF36F048ZST HONGFA PCB POWER RELAY 48VDC 10A 1CO HF36F/048-ZST 1C - Single Pole Changeover 48VDC 530mW 62.4 10AMP 36 2.4 4400 x (1�10%)
