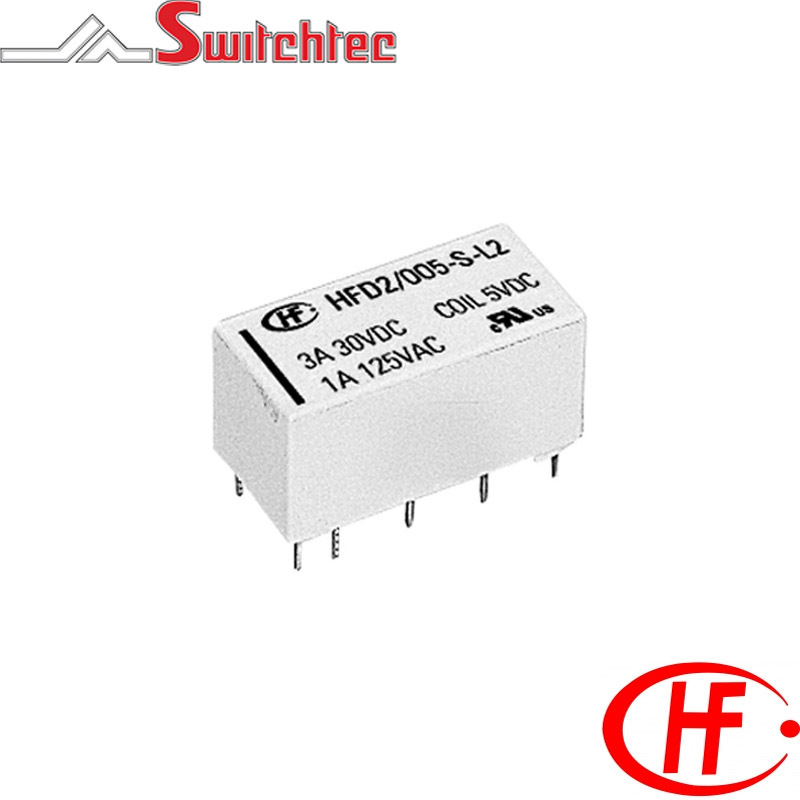

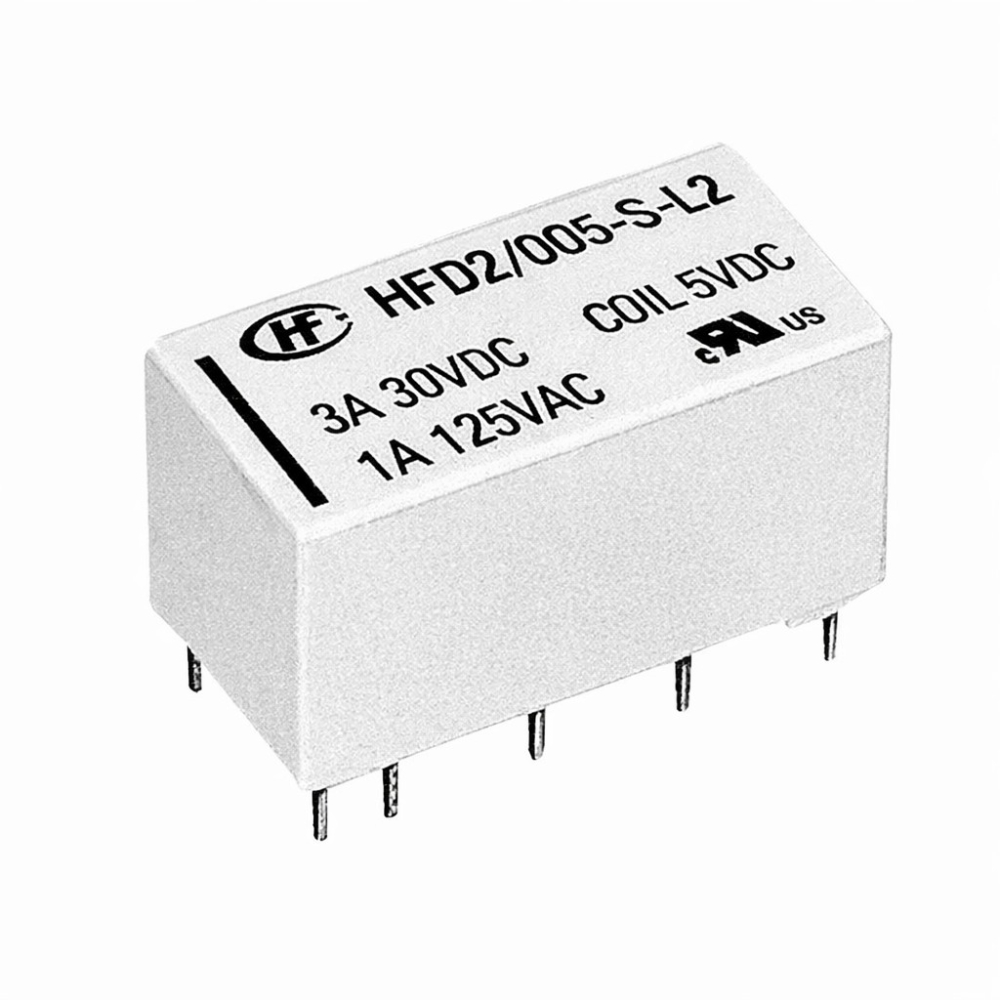

1 Coil Latching (Sensitive) 75mW 1 Amp

1 Coil Latching (Sensitive) 75mW 1 Amp

  • 1A 125VAC / 2A 30VDC contact rating
  • 2 pole c/o contacts
  • 1 Coil Latching versions
  • Sensitive version
  • High Sensitive Type 75mW
  • Fully sealed
  • Contact Material AgPd60/Ag –AuAg8, others available upon request
  • Bifurcated contacts
  • RoHS Compliant
  • Approvals UL/CSA



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Coil ? � 10% Set/Reset Voltage VDC Max Price
HFD2-003S-L1 HONGFA PCB SIGNAL RELAY 3VDC 2A 2CO HFD2/003-S-L1 2C - Double Pole Changeover 3VDC 100mW 8.4 3AMP 60 x (1�10%) 2.4
HFD2-005S-L1 HONGFA PCB SIGNAL RELAY 5VDC 2A 2CO HFD2/005-S-L1 2C - Double Pole Changeover 5VDC 100mW 14 3AMP 330 x (1�10%) 4
HFD2-006S-L1 HONGFA PCB SIGNAL RELAY 6VDC 2A 2CO HFD2/006-S-L1 2C - Double Pole Changeover 6VDC 100mW 17 3AMP 480 x (1�10%) 4.8
HFD2-009S-L1 HONGFA PCB SIGNAL RELAY 9VDC 2A 2CO HFD2/009-S-L1 2C - Double Pole Changeover 9VDC 100mW 25 3AMP 1080 x (1�10%) 7.2
HFD2-012S-L1 HONGFA PCB SIGNAL RELAY 12VDC 2A 2CO HFD2/012-S-L1 2C - Double Pole Changeover 12VDC 100mW 34 3AMP 1920 x (1�10%) 9.6
HFD2-015S-L1 HONGFA PCB SIGNAL RELAY 15VDC 2A 2CO HFD2/015-S-L1 2C - Double Pole Changeover 15VDC 100mW 42 3AMP 3000 x (1�10%) 12
HFD2-024S-L1 HONGFA PCB SIGNAL RELAY 24VDC 2A 2CO HFD2/024-S-L1 2C - Double Pole Changeover 24VDC 100mW 56 3AMP 4680 x (1�10%) 19.2
