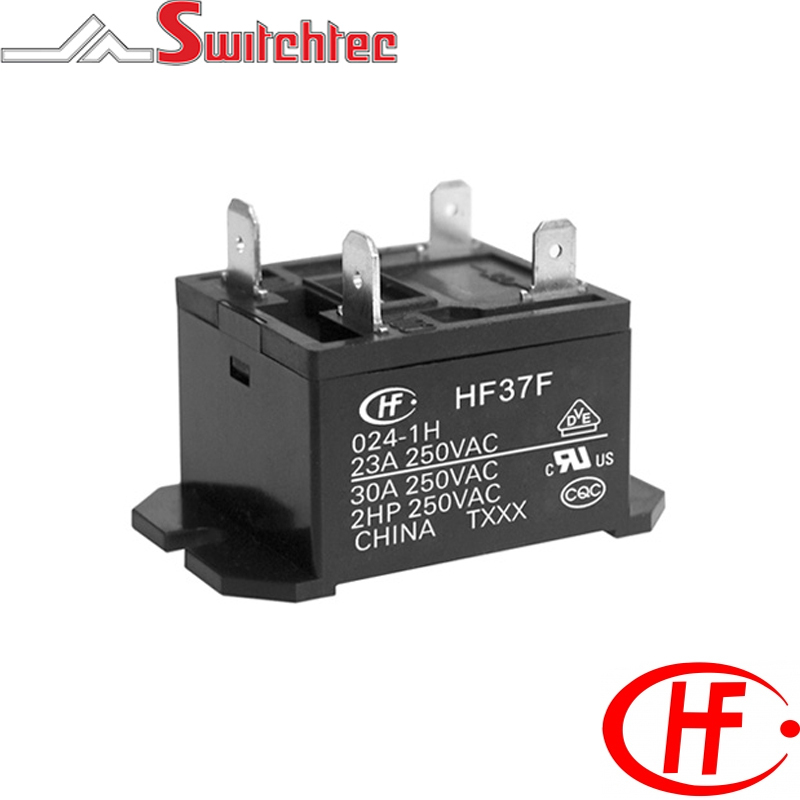

30 Amp 1 Pole Normally Open Relay

30 Amp 1 Pole Normally Open Relay

  • 30 Amp switching capacity
  • 900mW Coil
  • 1 Form A contact
  • TV-15 (at 120VAC) available
  • Contact materials AgSnO2
  • RoHS compliant
  • Approvals UL and CUL
  • 70 amp withstand current



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF37F0051HT HONGFA POWER RELAY 5VDC 30A 1NO HF37F/005-1HT 1A - Single Pole Normally Open 5VDC 1200mW 6 30 AMP 3.5 0.5 20.8 x (1�10%)
HF37F0061HT HONGFA POWER RELAY 6VDC 30A 1NO HF37F/006-1HT 1A - Single Pole Normally Open 6VDC 1200mW 7.2 30 AMP 4.2 0.6 30 x (1�10%)
HF37F0091HT HONGFA POWER RELAY 9VDC 30A 1NO HF37F/009-1HT 1A - Single Pole Normally Open 9VDC 1200mW 10.8 30 AMP 6.3 0.9 67.5 x (1�10%)
HF37F0121HT HONGFA POWER RELAY 12VDC 30A 1NO HF37F/012-1HT 1A - Single Pole Normally Open 12VDC 1200mW 14.4 30 AMP 8.4 1.2 120 x (1�10%)
HF37F0241HT HONGFA POWER RELAY 24VDC 30A 1NO HF37F/024-1HT 1A - Single Pole Normally Open 24VDC 1200mW 28.8 30 AMP 16.8 2.4 480 x (1�10%)
HF37F0481HT HONGFA POWER RELAY 48VDC 30A 1NO HF37F/048-1HT 1A - Single Pole Normally Open 48VDC 1200mW 57.6 30 AMP 33.6 4.8 1920 x (1�10%)
