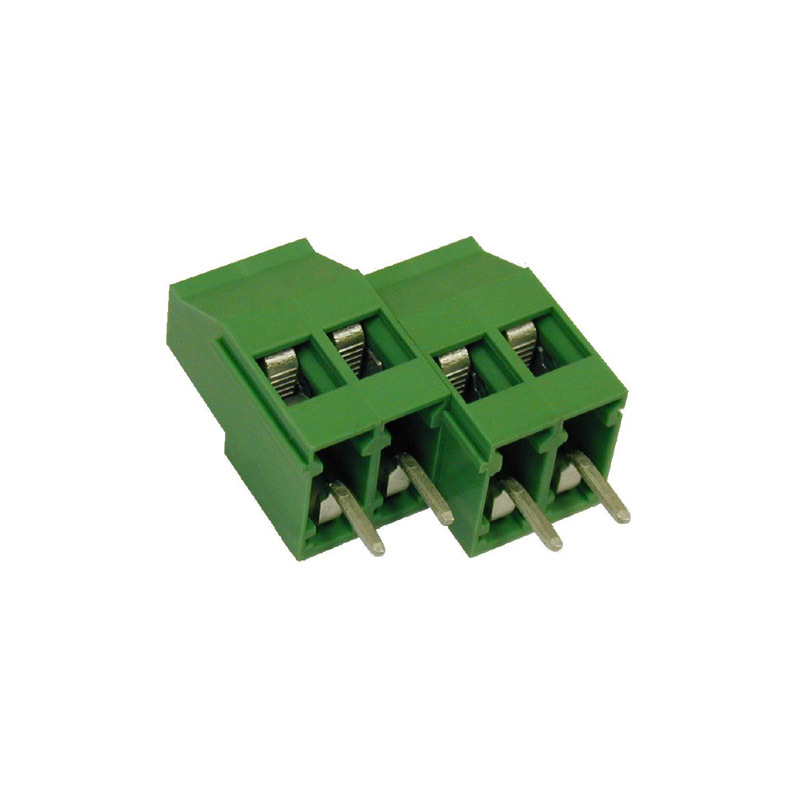

MVST25-V 5.08mm Single Deck PCB Terminal Blocks

Descriptions

5.08mm Pitch PCB Terminal Block
2-3 Pole Interlocking
24 Amp Current rating
Moulded in Green UL94-V0 flame retardant PA
Rising Clamp Terminal
Captive screws
Guided pin alignment
UL approved

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Operating Temperature	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Price
MVST2510-5.08-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5.08mm 10 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.08mm	250V	4	PA - UL 94 V0	10	24 AMP	Green	Please login to see prices.
MVST2511-5.08-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5.08mm 11 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.08mm	250V	4	PA - UL 94 V0	11	24 AMP	Green	Please login to see prices.
MVST2512-5.08-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5.08mm 12 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.08mm	250V	4	PA - UL 94 V0	12	24 AMP	Green	Please login to see prices.
MVST252-508-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5.08mm 2 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.08mm	250V	4	PA - UL 94 V0	2	24 AMP	Green	Please login to see prices.
MVST253-508-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5.08mm 3 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.08mm	250V	4	PA - UL 94 V0	3	24 AMP	Green	Please login to see prices.
MVST254-5.08-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5.08mm 4 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.08mm	250V	4	PA - UL 94 V0	4	24 AMP	Green	Please login to see prices.
MVST255-5.08-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5.08mm 5 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.08mm	250V	4	PA - UL 94 V0	5	24 AMP	Green	Please login to see prices.
MVST256-5.08-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5.08mm 6 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.08mm	250V	4	PA - UL 94 V0	6	24 AMP	Green	Please login to see prices.
MVST257-5.08-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5.08mm 7 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.08mm	250V	4	PA - UL 94 V0	7	24 AMP	Green	Please login to see prices.
MVST258-5.08-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5.08mm 8 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.08mm	250V	4	PA - UL 94 V0	8	24 AMP	Green	Please login to see prices.
MVST259-5.08-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5.08mm 9 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.08mm	250V	4	PA - UL 94 V0	9	24 AMP	Green	Please login to see prices.
