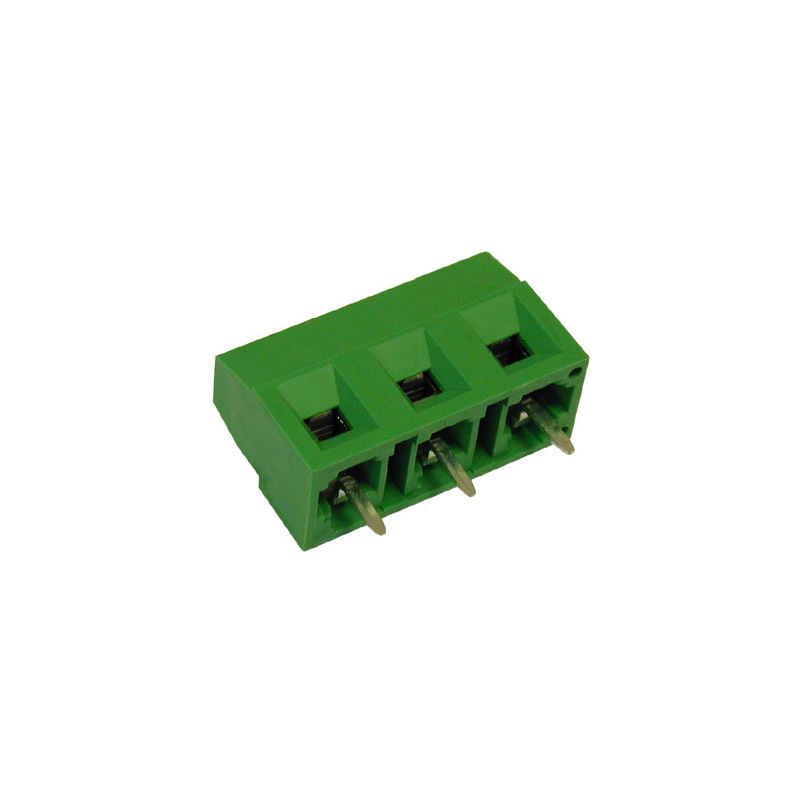

MVS17-V-L Single Deck PCB Terminal Blocks

MVS17-V-L Single Deck PCB Terminal Blocks

  • 7.5mm Pitch PCB Terminal Block
  • 2-12 Pole Mono-block
  • 17.5 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA.
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ and UL approved
  • Alternative colours available upon request



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MVS1710-7.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.5mm 10 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 7.50mm 750V 2.5 PA - UL 94 V0 10 17.5 AMP Green
MVS1711-7.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.5mm 11 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 7.50mm 750V 2.5 PA - UL 94 V0 11 17.5 AMP Green
MVS1712-7.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.5mm 12 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 7.50mm 750V 2.5 PA - UL 94 V0 12 17.5 AMP Green
MVS172-7.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.5mm 2 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 7.50mm 750V 2.5 PA - UL 94 V0 2 17.5 AMP Green
MVS174-7.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.5mm 4 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 7.50mm 750V 2.5 PA - UL 94 V0 4 17.5 AMP Green
MVS175-7.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.5mm 5 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 7.50mm 750V 2.5 PA - UL 94 V0 5 17.5 AMP Green
MVS176-7.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.5mm 6 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 7.50mm 750V 2.5 PA - UL 94 V0 6 17.5 AMP Green
MVS177-7.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.5mm 7 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 7.50mm 750V 2.5 PA - UL 94 V0 7 17.5 AMP Green
MVS178-7.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.5mm 8 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 7.50mm 750V 2.5 PA - UL 94 V0 8 17.5 AMP Green
MVS179-7.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.5mm 9 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 7.50mm 750V 2.5 PA - UL 94 V0 9 17.5 AMP Green
