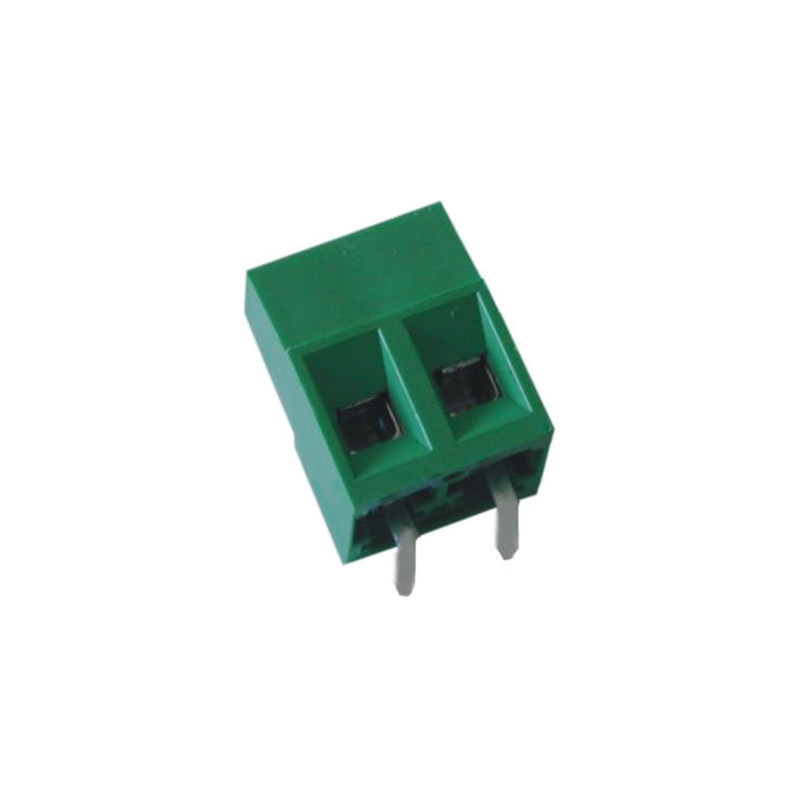

MVS15-H-L 5mm Single Deck PCB Terminal Blocks

MVS15-H-L 5mm Single Deck PCB Terminal Blocks

  • 5mm Pitch PCB Terminal Block
  • 2-12 Pole Mono-block
  • 17.5 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ and UL approved
  • Alternative colours available upon request



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MVS1510-5-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 5mm 10 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 10 13.5 AMPS Green
MVS1511-5-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 5mm 11 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 11 13.5 AMPS Green
MVS1512-5-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 5mm 12 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 12 13.5 AMPS Green
MVS152-5-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 10.16mm 2P 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 2 13.5 AMPS Green
MVS153-5-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 5mm 3 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 3 13.5 AMPS Green
MVS154-5-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 5mm 4 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 4 13.5 AMPS Green
MVS155-5-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 5mm 5 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 5 13.5 AMPS Green
MVS156-5-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 5mm 6 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 6 13.5 AMPS Green
MVS157-5-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 5mm 7 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 7 13.5 AMPS Green
MVS158-5-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 5mm 8 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 8 13.5 AMPS Green
MVS159-5-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 5mm 9 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 9 13.5 AMPS Green
