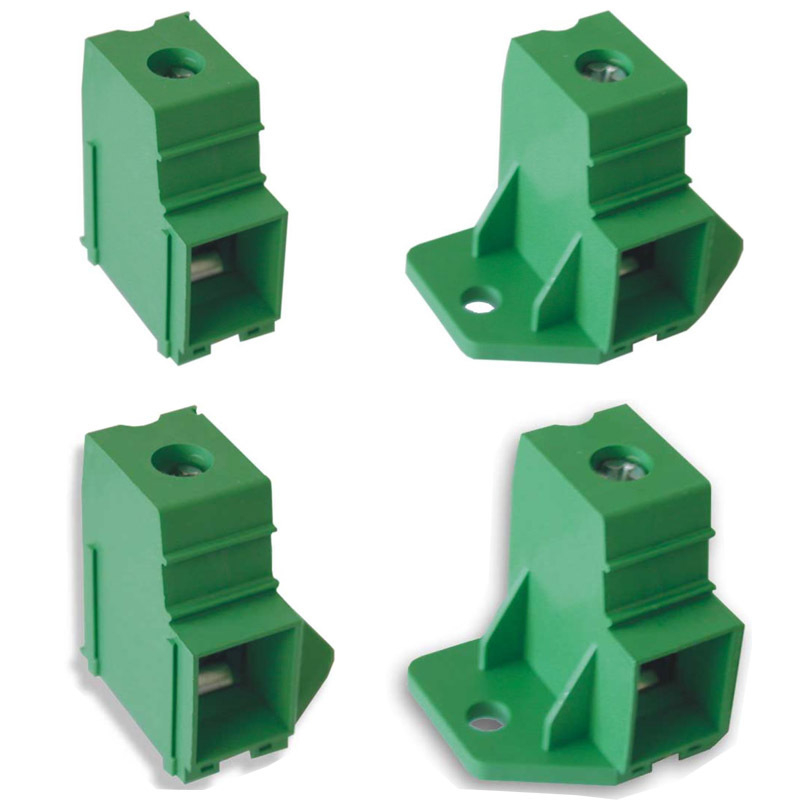

MVP35 Single Deck PCB Terminal Blocks

Descriptions

15mm Pitch PCB Terminal Block
1 Pole Mono-block
125 Amp Current rating
Moulded in Green UL94-V0 flame retardant PA
Rising Clamp Terminal
Captive screws
Guided pin alignment
UL approved
Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Operating Temperature	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Price
MVP351-15-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 125A 15mm 1 POLE	35	-40 to +130℃	Tin-plated copper alloy	15.00mm	1000V	35	PA - UL 94 V2	1	125 AMP	Green	Please login to see prices.
MVP351-15-V-KD	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 125A 15mm 1 POLE	35	-40 to +130℃	Tin-plated copper alloy	15.00mm	1000V	35	PA - UL 94 V3	1	125 AMP	Green	Please login to see prices.
MVP351-15-V-KK	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 125A 15mm 1 POLE	35	-40 to +130℃	Tin-plated copper alloy	15.00mm	1000V	35	PA - UL 94 V4	1	125 AMP	Green	Please login to see prices.
MVP351-15-V-KS	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 125A 15mm 1 POLE	35	-40 to +130℃	Tin-plated copper alloy	15.00mm	1000V	35	PA - UL 94 V5	1	125 AMP	Green	Please login to see prices.
