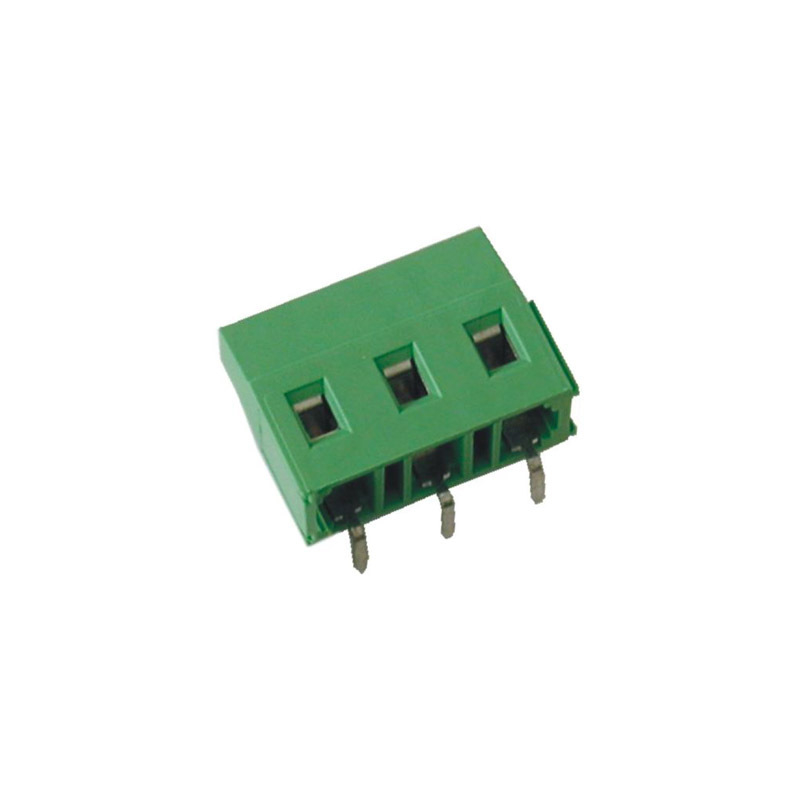

MVE27-H Single Deck PCB Terminal Blocks

  • 7.5mm Pitch PCB Terminal BlocK
  • 2-3 Pole Interlocking
  • 16 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ, VDE and UL approved
  • Alternative colours available upon request



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MVE272-7.5-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 16A 7.5mm 2 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 7.50mm 750V 4 PA - UL 94 V0 2 16 AMP Green
MVE273-7.5-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 16A 7.5mm 3 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 7.50mm 750V 4 PA - UL 94 V0 3 16 AMP Green
