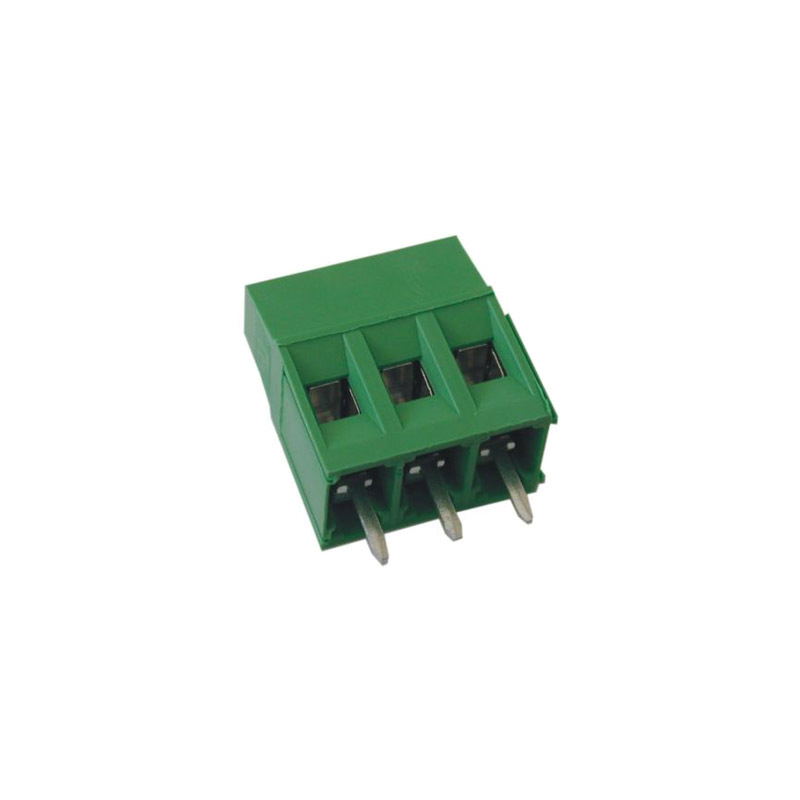

MVE25-V 5mm Single Deck PCB Terminal Blocks

Descriptions

5mm Pitch PCB Terminal BlocK
2-12 Pole Interlocking
16 Amp Current rating
Moulded in Green UL94-V0 flame retardant PA
Rising Clamp Terminal
Captive screws
Guided pin alignment
IMQ, VDE and UL approved
Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Operating Temperature	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Price
MVE2510-5-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 10 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.00mm	750V	4	PA - UL 94 V0	10	16 AMPS	Green	Please login to see prices.
MVE2511-5-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 11 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.00mm	750V	4	PA - UL 94 V0	11	16 AMPS	Green	Please login to see prices.
MVE2512-5-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 12 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.00mm	750V	4	PA - UL 94 V0	12	16 AMPS	Green	Please login to see prices.
MVE252-5-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 2 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.00mm	750V	4	PA - UL 94 V0	2	16 AMPS	Green	Please login to see prices.
MVE253-5-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 3 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.00mm	750V	4	PA - UL 94 V0	3	16 AMPS	Green	Please login to see prices.
MVE254-5-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 4 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.00mm	750V	4	PA - UL 94 V0	4	16 AMPS	Green	Please login to see prices.
MVE255-5-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 5 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.00mm	750V	4	PA - UL 94 V0	5	16 AMPS	Green	Please login to see prices.
MVE256-5-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 6 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.00mm	750V	4	PA - UL 94 V0	6	16 AMPS	Green	Please login to see prices.
MVE257-5-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 7 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.00mm	750V	4	PA - UL 94 V0	7	16 AMPS	Green	Please login to see prices.
MVE258-5-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 8 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.00mm	750V	4	PA - UL 94 V0	8	16 AMPS	Green	Please login to see prices.
MVE259-5-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 9 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	5.00mm	750V	4	PA - UL 94 V0	9	16 AMPS	Green	Please login to see prices.
