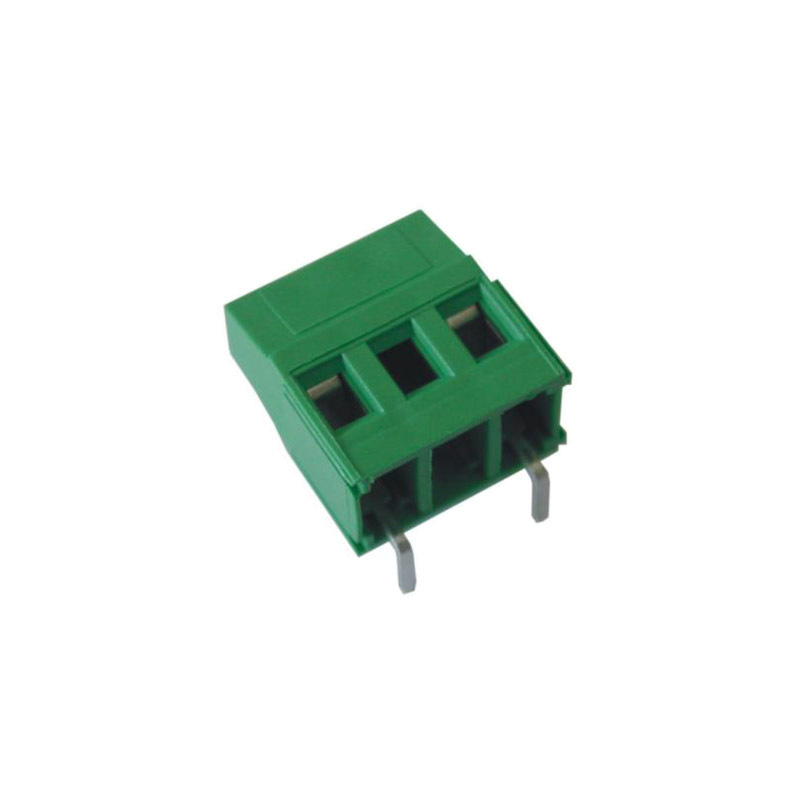

MVE25-H Single Deck PCB Terminal Blocks

MVE25-H Single Deck PCB Terminal Blocks

  • 10mm Pitch PCB Terminal Block
  • 1-6 Pole Interlocking
  • 16 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ, VDE and UL approved
  • Alternative colours available upon request



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MVE251-10-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 16A 10mm 1 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 4 PA - UL 94 V0 1 16 AMP Green
MVE252-10-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 16A 10mm 2 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 4 PA - UL 94 V0 2 16 AMP Green
MVE253-10-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 16A 10mm 1 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 4 PA - UL 94 V0 3 16 AMP Green
MVE254-10-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 16A 10mm 2 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 4 PA - UL 94 V0 4 16 AMP Green
MVE255-10-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 16A 10mm 1 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 4 PA - UL 94 V0 5 16 AMP Green
MVE256-10-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 16A 10mm 2 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 4 PA - UL 94 V0 6 16 AMP Green
