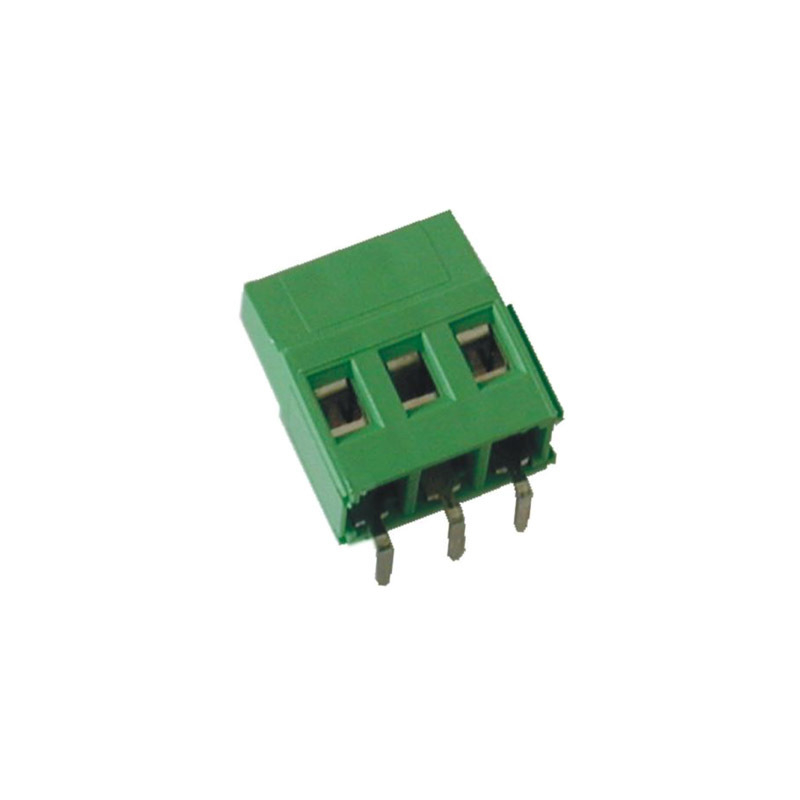

MVE25-H 5mm Single Deck PCB Terminal Blocks

MVE25-H 5mm Single Deck PCB Terminal Blocks

  • 5mm Pitch PCB Terminal Block
  • 2-12 Pole Interlocking
  • 16 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ and UL approved
  • Alternative colours available upon request



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MVE2510-5-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 16A 5mm 10 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 10 13.5 AMPS Green
MVE2511-5-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 16A 5mm 11 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 11 13.5 AMPS Green
MVE2512-5-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 16A 5mm 12 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 12 13.5 AMPS Green
MVE252-5-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 16A 5mm 2 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 2 13.5 AMPS Green
MVE253-5-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 16A 5mm 3 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 3 13.5 AMPS Green
MVE254-5-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 16A 5mm 4 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 4 13.5 AMPS Green
MVE255-5-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 16A 5mm 5 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 5 13.5 AMPS Green
MVE256-5-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 16A 5mm 6 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 6 13.5 AMPS Green
MVE257-5-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 16A 5mm 7 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 7 13.5 AMPS Green
MVE258-5-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 16A 5mm 8 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 8 13.5 AMPS Green
MVE259-5-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 16A 5mm 9 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 9 13.5 AMPS Green
