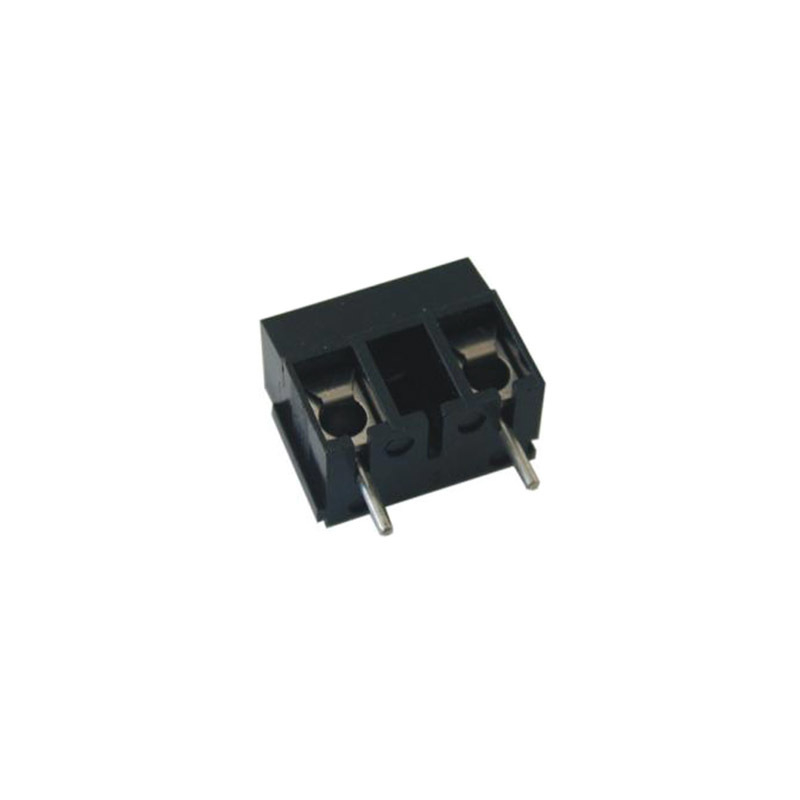

MVE16-V Single Deck PCB Terminal Blocks

  • 10mm Pitch PCB Terminal Block
  • 1-2 Pole Interlocking
  • 16 Amp Current rating
  • Moulded in Black UL94-V0 flame retardant PA
  • Cage Clamp Terminal
  • Captive screws
  • Guided pin alignment



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MVE161-10-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 10mm 1 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 4 PA - UL 94 V0 1 16 AMP Black
MVE162-10-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 10mm 2 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 4 PA - UL 94 V0 2 16 AMP Black
