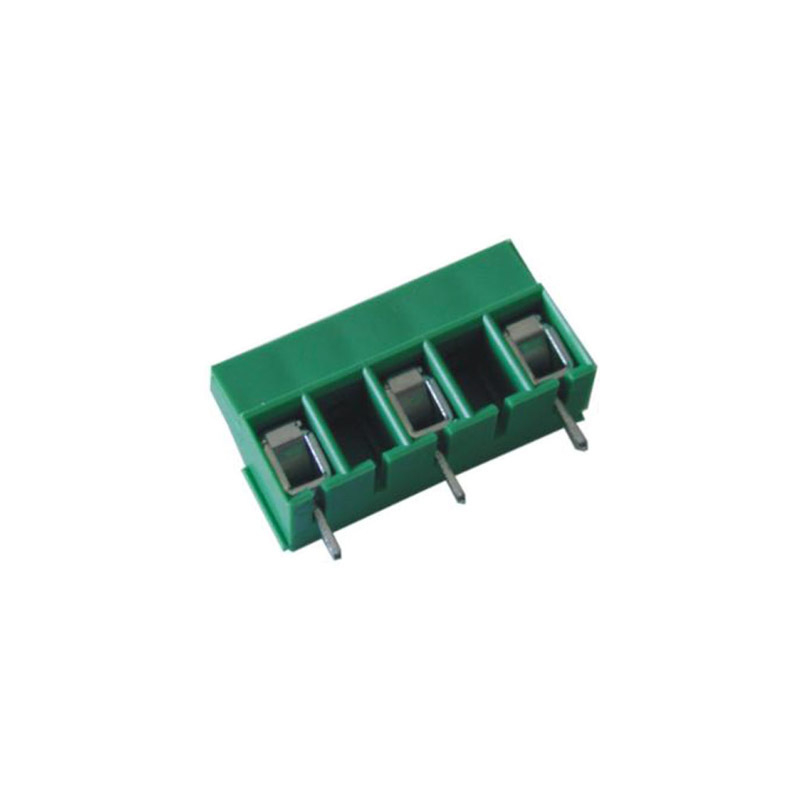

MVE15-V Single Deck PCB Terminal Blocks

MVE15-V Single Deck PCB Terminal Blocks

  • 10mm Pitch PCB Terminal Block
  • 1-6 Pole Interlocking
  • 24 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Cage Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ, VDE and UL approved
  • Alternative colours available upon request



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MVE151-10-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 10mm 1 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 2.5 PA - UL 94 V0 1 17.5 AMP Green
MVE152-10-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 10mm 2 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 2.5 PA - UL 94 V0 2 17.5 AMP Green
MVE153-10-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 10mm 3 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 2.5 PA - UL 94 V0 3 17.5 AMP Green
MVE154-10-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 10mm 4 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 2.5 PA - UL 94 V0 4 17.5 AMP Green
MVE155-10-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 10mm 5 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 2.5 PA - UL 94 V0 5 17.5 AMP Green
MVE156-10-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 10mm 6 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 2.5 PA - UL 94 V0 6 17.5 AMP Green
MVE157-10-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 10mm 7 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 2.5 PA - UL 94 V0 7 17.5 AMP Green
MVE159-10-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 10mm 9 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 2.5 PA - UL 94 V0 9 17.5 AMP Green
