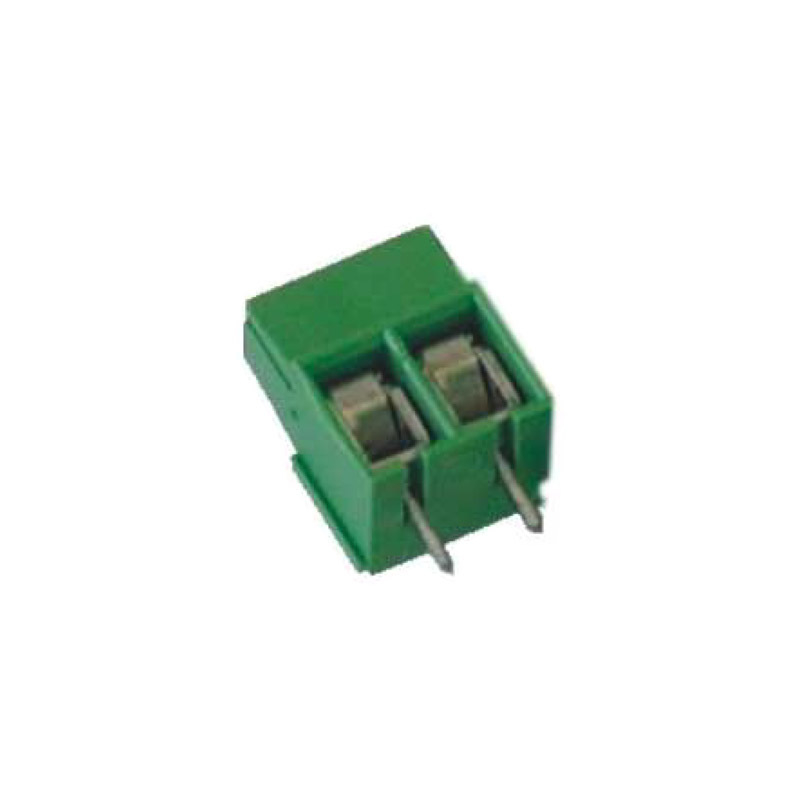

MVE15-V 5mm Single Deck PCB Terminal Blocks

MVE15-V 5mm Single Deck PCB Terminal Blocks

  • 5mm Pitch PCB Terminal Block
  • 2-12 Pole Interlocking
  • 24 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Cage Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • ImQ, VDE and UL approved
  • Alternative colours available upon request



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MVE1510-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5mm 10 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 10 17.5 AMPS Green
MVE1511-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5mm 11 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 11 17.5 AMPS Green
MVE1512-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5mm 12 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 12 17.5 AMPS Green
MVE152-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5mm 2 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 2 17.5 AMPS Green
MVE153-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5mm 3 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 3 17.5 AMPS Green
MVE154-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5mm 4 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 4 17.5 AMPS Green
MVE155-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5mm 5 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 5 17.5 AMPS Green
MVE156-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5mm 6 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 6 17.5 AMPS Green
MVE157-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5mm 7 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 7 17.5 AMPS Green
MVE158-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5mm 8 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 8 17.5 AMPS Green
MVE159-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 5mm 9 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 9 17.5 AMPS Green
