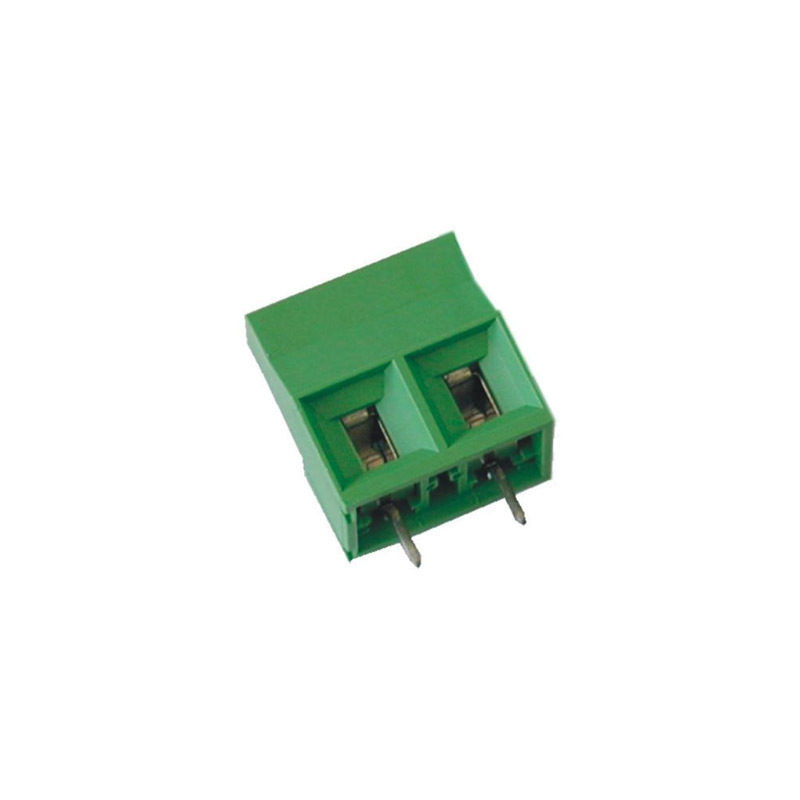

MV49-V Single Deck PCB Terminal Blocks

MV49-V Single Deck PCB Terminal Blocks

  • 9.52mm Pitch PCB Terminal Block
  • 2-3 Pole Interlocking
  • 32 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ, VDE and UL approved
  • Alternative colours available upon request



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MV492-9.52-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 32A 9.52mm 2 POLE 6 -40 to +130℃ Tin-plated copper alloy 9.52mm 750V 6 PA - UL 94 V0 2 32 AMP Green
MV493-9.52-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 32A 9.52mm 3 POLE 6 -40 to +130℃ Tin-plated copper alloy 9.52mm 750V 6 PA - UL 94 V0 3 32 AMP Green
