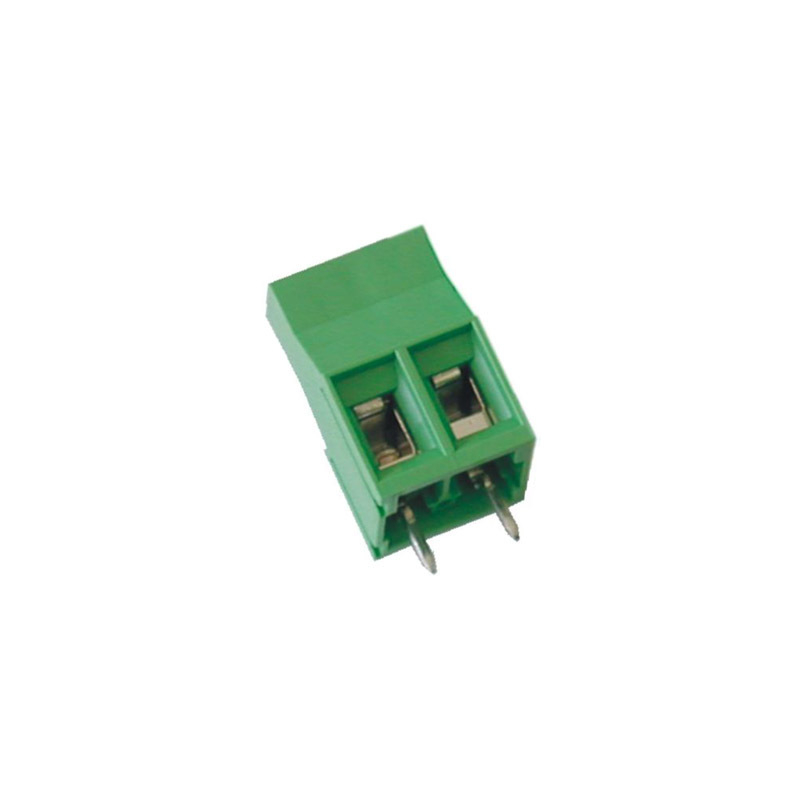

MV46-V 6.35mm Single Deck PCB Terminal Blocks

MV46-V 6.35mm Single Deck PCB Terminal Blocks

  • 6.35mm Pitch PCB Terminal Block
  • 2-3 Pole Interlocking
  • 32 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ, VDE and UL approved
  • Alternative colours available upon request



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MV462-6.35-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 32A 6.35mm 2 POLE 6 -40 to +130℃ Tin-plated copper alloy 6.35mm 750V 6 PA - UL 94 V0 2 32 AMP Green
MV463-6.35-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 32A 6.35mm 3 POLE 6 -40 to +130℃ Tin-plated copper alloy 6.35mm 750V 6 PA - UL 94 V0 3 32 AMP Green
