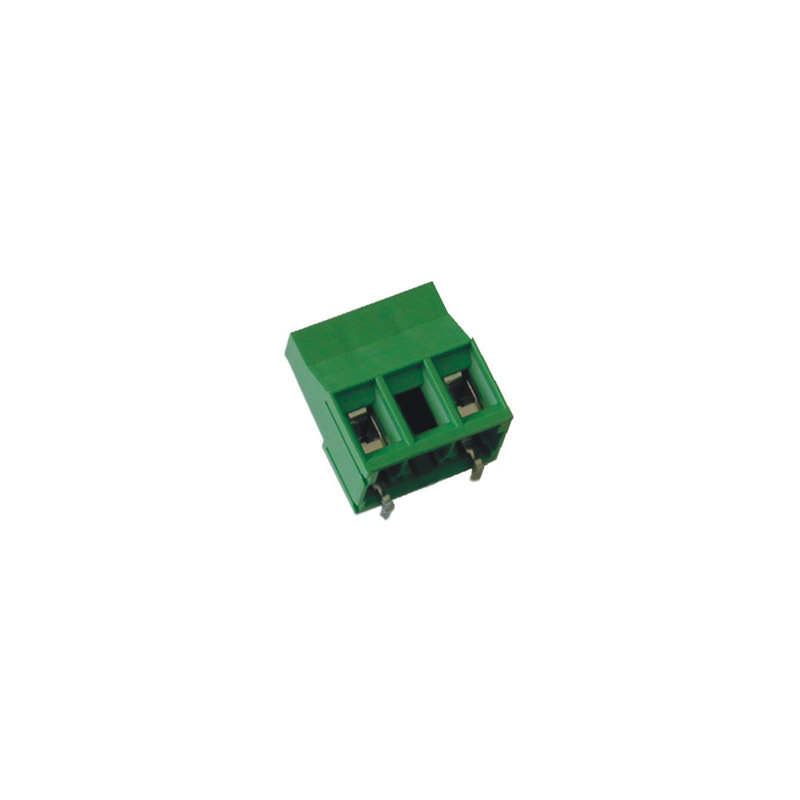

MV46-H Single Deck PCB Terminal Blocks

MV46-H Single Deck PCB Terminal Blocks

  • 12.7mm Pitch PCB Terminal Block
  • 1-2 Pole Mono-block
  • 32 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ, VDE and UL approved
  • Alternative colours available upon request



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MV461-12.7-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 32A 12.7mm 1 POLE 6 -40 to +130℃ Tin-plated copper alloy 12.70mm 750V 6 PA - UL 94 V0 1 32 AMP Green
MV462-12.7-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 32A 12.7mm 2 POLE 6 -40 to +130℃ Tin-plated copper alloy 12.70mm 750V 6 PA - UL 94 V1 2 32 AMP Green
