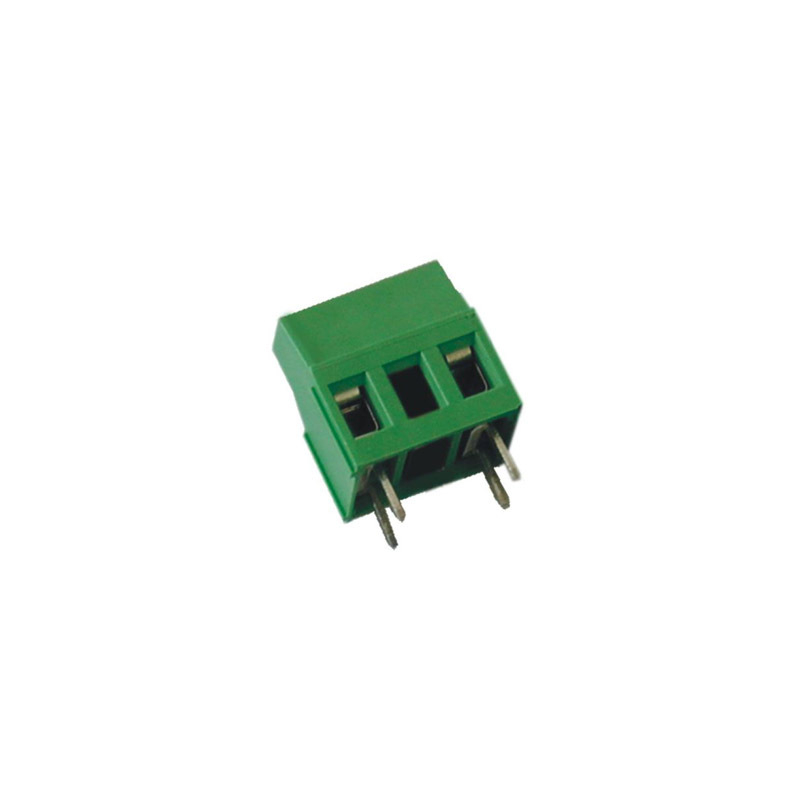

MV25D-V Single Deck PCB Terminal Blocks

MV25D-V Single Deck PCB Terminal Blocks

  • 10.16mm Pitch PCB Terminal Block
  • 1/2 Pole Mono-block
  • 24 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ and UL approved
  • Alternative colours available upon request



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MV25D1-10.16-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 10.16mm 1 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 10.16mm 750V 4 PA - UL 94 V0 1 24 AMP Green
MV25D2-10.16-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 10.16mm 2 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 10.16mm 750V 4 PA - UL 94 V1 2 24 AMP Green
MV25D3-10.16-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 10.16mm 3 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 10.16mm 750V 4 PA - UL 94 V2 3 24 AMP Green
MV25D4-10.16-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 10.16mm 4 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 10.16mm 750V 4 PA - UL 94 V3 4 24 AMP Green
