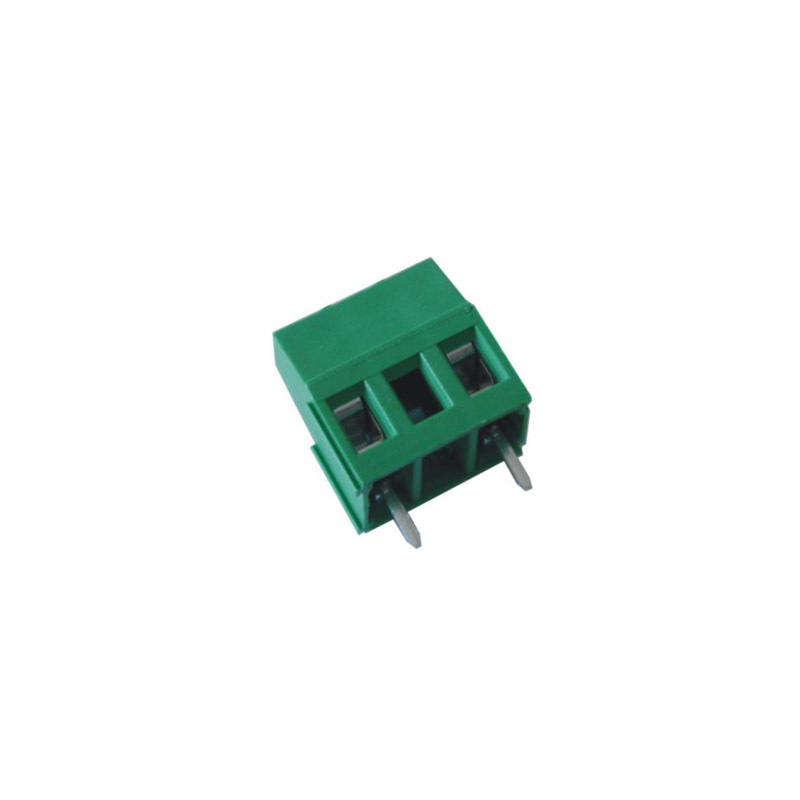

MV25-V Single Deck PCB Terminal Blocks

MV25-V Single Deck PCB Terminal Blocks

  • 10.16mm Pitch PCB Terminal Block
  • 1/2 Pole Interlocking
  • 16 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ, VDE and UL approved
  • Alternative colours available upon request



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MV251-10.16-V EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 16A 10.16mm 1 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 10.16mm 750V 4 PA - UL 94 V0 1 16 AMP Green
MV252-10.16-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 10.16mm 2 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 10.16mm 750V 4 PA - UL 94 V1 2 16 AMP Green
MV253-10.16-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 10.16mm 3 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 10.16mm 750V 4 PA - UL 94 V2 3 16 AMP Green
MV254-10.16-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 10.16mm 4 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 10.16mm 750V 4 PA - UL 94 V3 4 16 AMP Green
MV255-10.16-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 10.16mm 5 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 10.16mm 750V 4 PA - UL 94 V4 5 16 AMP Green
MV256-10.16-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 10.16mm 6 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 10.16mm 750V 4 PA - UL 94 V5 6 16 AMP Green
