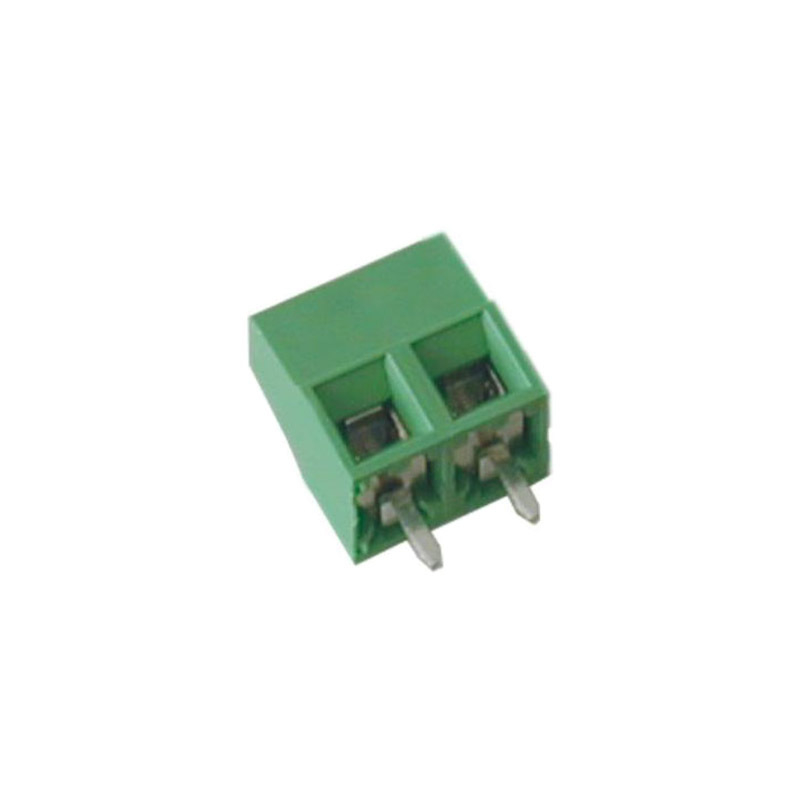

MV15-V-L 5mm Single Deck PCB Terminal Blocks

MV15-V-L 5mm Single Deck PCB Terminal Blocks

  • 5mm Pitch PCB Terminal Block
  • 2-12 Pole Mono-block
  • 13.5 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • ImQ and UL approved
  • Alternative colours available upon request



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MV1510-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 10 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 10 13.5 AMPS Green
MV1511-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 11 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 11 13.5 AMPS Green
MV1512-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 12 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 12 13.5 AMPS Green
MV152-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 2 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 2 13.5 AMPS Green
MV153-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 3 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 3 13.5 AMPS Green
MV154-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 4 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 4 13.5 AMPS Green
MV155-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 5 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 5 13.5 AMPS Green
MV156-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 6 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 6 13.5 AMPS Green
MV157-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 7 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 7 13.5 AMPS Green
MV158-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 8 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 8 13.5 AMPS Green
MV159-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 9 POLE 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 9 13.5 AMPS Green
