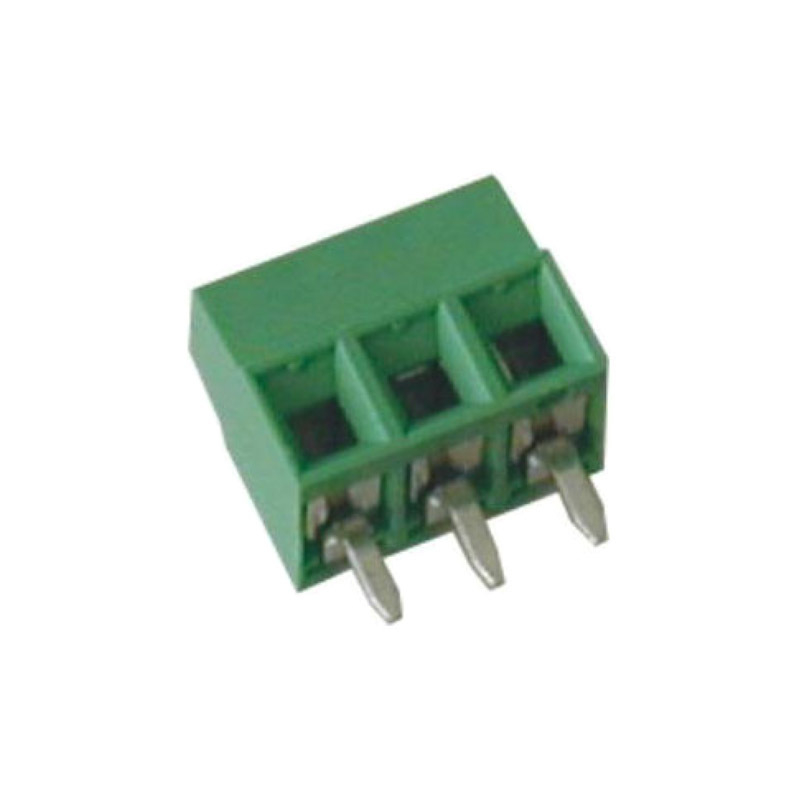

MV13-V-L 3.5mm Single Deck PCB Terminal Block

MV13-V-L 3.5mm Single Deck PCB Terminal Block

  • 3.5mm Pitch PCB Terminal Block
  • 2-12 Pole Mono-block
  • 17.5 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA.
  • Cage Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ and UL approved
  • Alternative colours available upon request



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MV1310-3.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.5mm 10 POLE 1 -40 to +130℃ Tin-plated copper alloy 3.5mm 450V 1.5 PA - UL 94 V0 10 13.5 AMPS Green
MV1311-3.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.5mm 11 POLE 1 -40 to +130℃ Tin-plated copper alloy 3.5mm 450V 1.5 PA - UL 94 V0 11 13.5 AMPS Green
MV1312-3.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.5mm 12 POLE 1 -40 to +130℃ Tin-plated copper alloy 3.5mm 450V 1.5 PA - UL 94 V0 12 13.5 AMPS Green
MV132-3.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.5mm 2 POLE 1 -40 to +130℃ Tin-plated copper alloy 3.5mm 450V 1.5 PA - UL 94 V0 2 13.5 AMPS Green
MV133-3.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.5mm 3 POLE 1 -40 to +130℃ Tin-plated copper alloy 3.5mm 450V 1.5 PA - UL 94 V0 3 13.5 AMPS Green
MV134-3.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.5mm 4 POLE 1 -40 to +130℃ Tin-plated copper alloy 3.5mm 450V 1.5 PA - UL 94 V0 4 13.5 AMPS Green
MV135-3.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.5mm 5 POLE 1 -40 to +130℃ Tin-plated copper alloy 3.5mm 450V 1.5 PA - UL 94 V0 5 13.5 AMPS Green
MV136-3.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.5mm 6 POLE 1 -40 to +130℃ Tin-plated copper alloy 3.5mm 450V 1.5 PA - UL 94 V0 6 13.5 AMPS Green
MV137-3.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.5mm 7 POLE 1 -40 to +130℃ Tin-plated copper alloy 3.5mm 450V 1.5 PA - UL 94 V0 7 13.5 AMPS Green
MV138-3.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.5mm 8 POLE 1 -40 to +130℃ Tin-plated copper alloy 3.5mm 450V 1.5 PA - UL 94 V0 8 13.5 AMPS Green
MV139-3.5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.5mm 9 POLE 1 -40 to +130℃ Tin-plated copper alloy 3.5mm 450V 1.5 PA - UL 94 V0 9 13.5 AMPS Green
