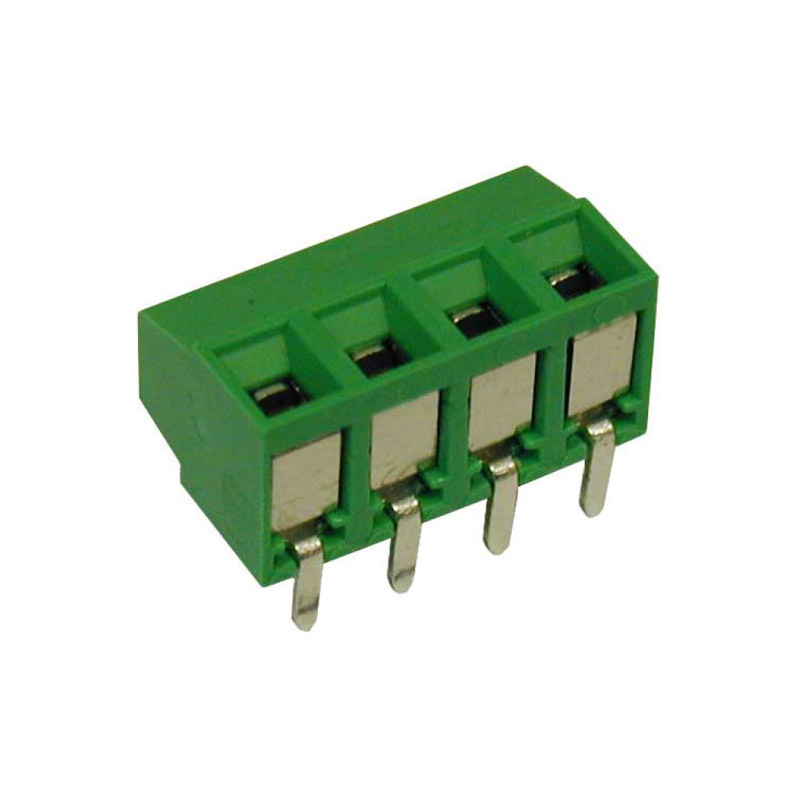

MV13-H-L 3.81mm Single Deck PCB Terminal Blocks

MV13-H-L 3.81mm Single Deck PCB Terminal Blocks

  • 3.81mm Pitch PCB Terminal Block
  • 2-12 Pole Mono-block
  • 17.5 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA.
  • Cage Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ and UL approved
  • Alternative colours available upon request



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MV1310-3.81-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 3.81mm 10P 1 -40 to +130℃ Tin-plated copper alloy 3.81mm 450V 1.5 PA - UL 94 V0 10 13.5 AMPS Green
MV1311-3.81-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 3.81mm 11P 1 -40 to +130℃ Tin-plated copper alloy 3.81mm 450V 1.5 PA - UL 94 V0 11 13.5 AMPS Green
MV1312-3.81-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 3.81mm 12P 1 -40 to +130℃ Tin-plated copper alloy 3.81mm 450V 1.5 PA - UL 94 V0 12 13.5 AMPS Green
MV132-3.81-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 3.81mm 2 POLE 1 -40 to +130℃ Tin-plated copper alloy 3.81mm 450V 1.5 PA - UL 94 V0 2 13.5 AMPS Green
MV133-3.81-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 3.81mm 3 POLE 1 -40 to +130℃ Tin-plated copper alloy 3.81mm 450V 1.5 PA - UL 94 V0 3 13.5 AMPS Green
MV134-3.81-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 3.81mm 4 POLE 1 -40 to +130℃ Tin-plated copper alloy 3.81mm 450V 1.5 PA - UL 94 V0 4 13.5 AMPS Green
MV135-3.81-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 3.81mm 5 POLE 1 -40 to +130℃ Tin-plated copper alloy 3.81mm 450V 1.5 PA - UL 94 V0 5 13.5 AMPS Green
MV136-3.81-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 3.81mm 6 POLE 1 -40 to +130℃ Tin-plated copper alloy 3.81mm 450V 1.5 PA - UL 94 V0 6 13.5 AMPS Green
MV137-3.81-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 3.81mm 7 POLE 1 -40 to +130℃ Tin-plated copper alloy 3.81mm 450V 1.5 PA - UL 94 V0 7 13.5 AMPS Green
MV138-3.81-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 3.81mm 8 POLE 1 -40 to +130℃ Tin-plated copper alloy 3.81mm 450V 1.5 PA - UL 94 V0 8 13.5 AMPS Green
MV139-3.81-H-L EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 3.81mm 9 POLE 1 -40 to +130℃ Tin-plated copper alloy 3.81mm 450V 1.5 PA - UL 94 V0 9 13.5 AMPS Green
