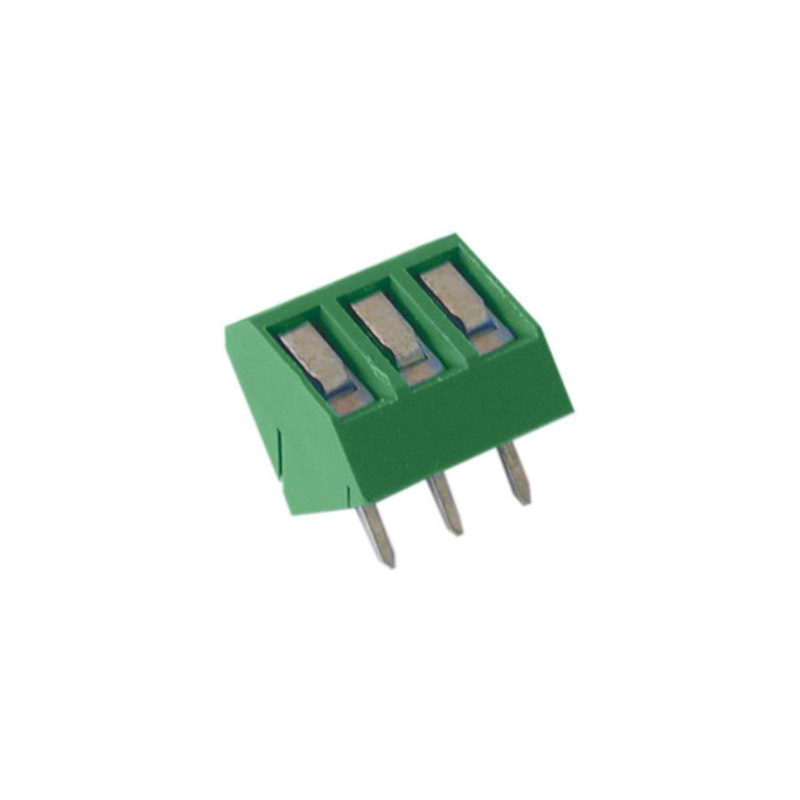

MIP25-IQ 5.08mm Single Deck PCB Terminal Blocks

Descriptions

5.08mm Pitch PCB Terminal Block
2-3 Pole Interlocking
24 Amp Current rating
Moulded in Green UL94-V0 flame retardant PA
Rising Clamp Terminal
Captive screws
Guided pin alignment
UL approved
Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

There are no downloads for this product.

Code	Description	Colour	Amperage	Poles	Materials (Body)	Cable Size, Flexible (mm2)	Cable Size, Solid (mm2)	Voltage	Pitch	Materials (Terminals)	Operating Temperature	Price
MIP252-5.08-IQ	EUROCLAMP PCB TERMINAL BLOCK ANGLED 24A 5.08mm 2 POLE	Green	24 AMP	2	PA - UL 94 V0	2.5	4	750V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
MIP253-5.08-IQ	EUROCLAMP PCB TERMINAL BLOCK ANGLED 24A 5.08mm 3 POLE	Green	24 AMP	3	PA - UL 94 V0	2.5	4	750V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
