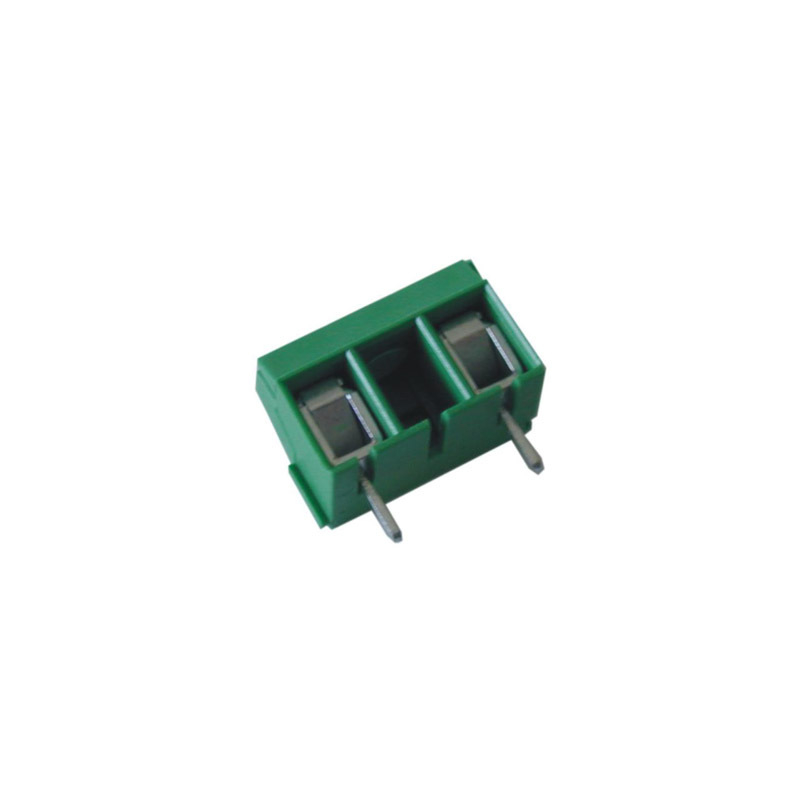

MBES15-V Single Deck PCB Terminal Blocks

Descriptions

10.16mm Pitch PCB Terminal Block
1-2 Pole Interlocking
24 Amp Current rating
Moulded in Green UL94-V0 flame retardant PA
Cage Clamp Terminal
Captive screws
Guided pin alignment
IMQ and UL approved
Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Operating Temperature	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Price
MBES151-10.16-V	EUROCLAMP PCB TERMINAL BLOCK 10.16mm 1 POLE VERTICAL	1.5	-40 to +130℃	Tin-plated copper alloy	10.16mm	750V	2.5	PA - UL 94 V0	1	17.5 AMP	Green	Please login to see prices.
MBES152-10.16-V	EUROCLAMP PCB TERMINAL BLOCK 10.16mm 2 POLE VERTICAL	1.5	-40 to +130℃	Tin-plated copper alloy	10.16mm	750V	2.5	PA - UL 94 V0	2	17.5 AMP	Green	Please login to see prices.
