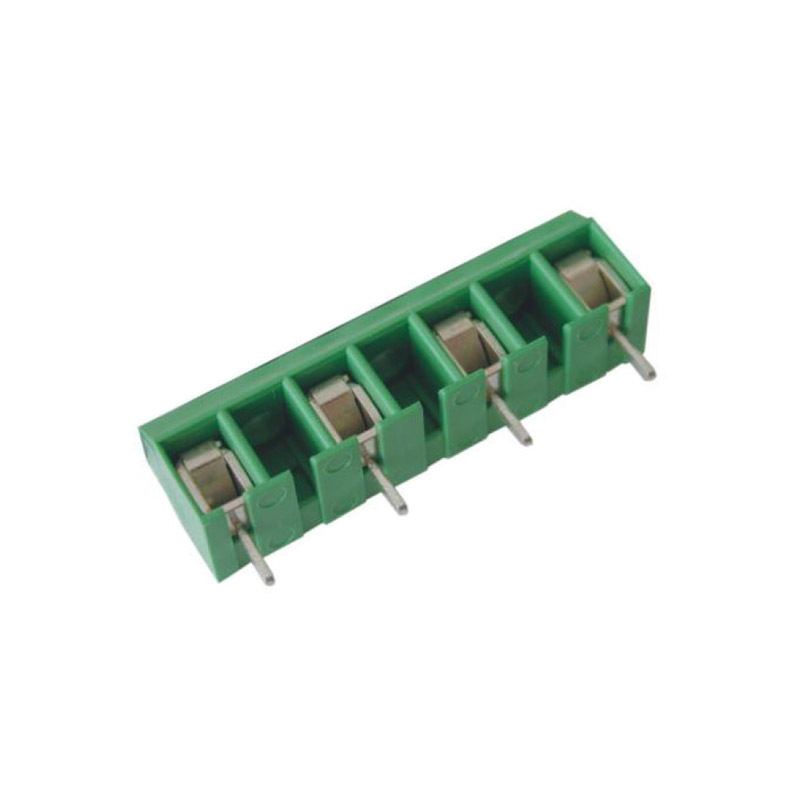

MBE15-V-L Single Deck PCB Terminal Blocks

MBE15-V-L Single Deck PCB Terminal Blocks

  • 10mm Pitch PCB Terminal Block
  • 2-6 Pole Mono-block
  • 24 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Cage Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ, VDE and UL approved
  • Alternative colours available upon request



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MBE151-10-V-L EUROCLAMP PCB TERMINAL BLOCK 24A 10mm 1 POLE VERTICAL 1.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 2.5 PA - UL 94 V0 1 17.5 AMP Green
MBE152-10-V-L EUROCLAMP PCB TERMINAL BLOCK 24A 10mm 2 POLE VERTICAL 1.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 2.5 PA - UL 94 V0 2 17.5 AMP Green
MBE153-10-V-L EUROCLAMP PCB TERMINAL BLOCK 24A 10mm 3 POLE VERTICAL 1.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 2.5 PA - UL 94 V0 3 17.5 AMP Green
MBE154-10-V-L EUROCLAMP PCB TERMINAL BLOCK 24A 10mm 4 POLE VERTICAL 1.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 2.5 PA - UL 94 V0 4 17.5 AMP Green
MBE155-10-V-L EUROCLAMP PCB TERMINAL BLOCK 24A 10mm 5 POLE VERTICAL 1.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 2.5 PA - UL 94 V0 5 17.5 AMP Green
MBE156-10-V-L EUROCLAMP PCB TERMINAL BLOCK 24A 10mm 6 POLE VERTICAL 1.5 -40 to +130℃ Tin-plated copper alloy 10.00mm 750V 2.5 PA - UL 94 V0 6 17.5 AMP Green
