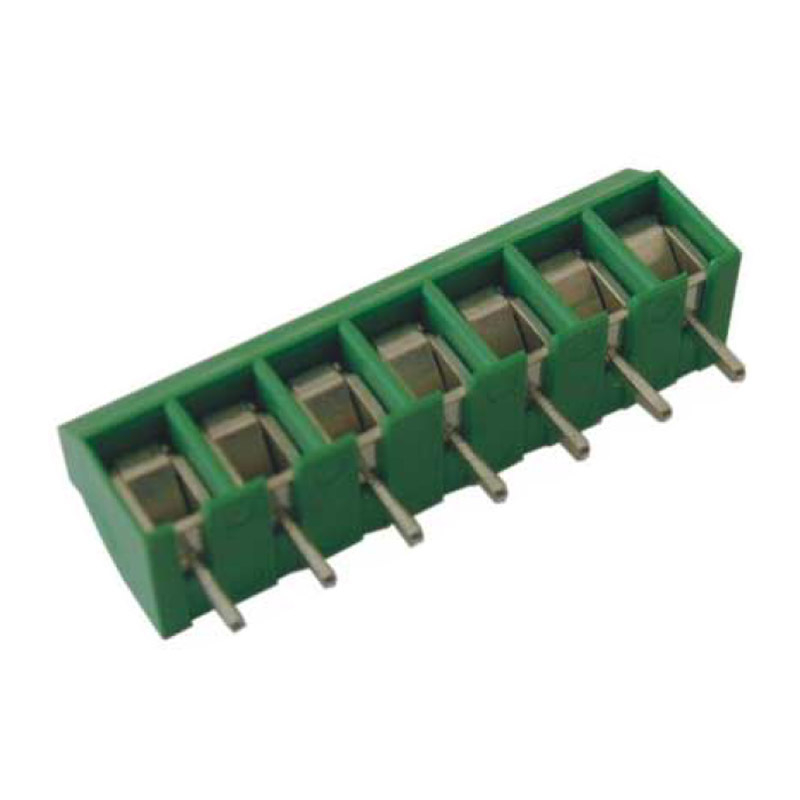

MBE15-V-L 5mm Single Deck PCB Terminal Blocks

MBE15-V-L 5mm Single Deck PCB Terminal Blocks

  • 5mm Pitch PCB Terminal Block
  • 2-12 Pole Mono-block
  • 24 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Cage Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ, VDE and UL approved
  • Alternative colours available upon request



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MBE1510-5-V-L EUROCLAMP PCB TERMINAL BLOCK 24A 5mm 10 POLE VERTICAL 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 10 17.5 AMPS Green
MBE1511-5-V-L EUROCLAMP PCB TERMINAL BLOCK 24A 5mm 11 POLE VERTICAL 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 11 17.5 AMPS Green
MBE1512-5-V-L EUROCLAMP PCB TERMINAL BLOCK 24A 5mm 12 POLE VERTICAL 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 12 17.5 AMPS Green
MBE152-5-V-L EUROCLAMP PCB TERMINAL BLOCK 24A 5mm 2 POLE VERTICAL 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 2 17.5 AMPS Green
MBE153-5-V-L EUROCLAMP PCB TERMINAL BLOCK 24A 5mm 3 POLE VERTICAL 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 3 17.5 AMPS Green
MBE154-5-V-L EUROCLAMP PCB TERMINAL BLOCK 24A 5mm 4 POLE VERTICAL 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 4 17.5 AMPS Green
MBE155-5-V-L EUROCLAMP PCB TERMINAL BLOCK 24A 5mm 5 POLE VERTICAL 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 5 17.5 AMPS Green
MBE156-5-V-L EUROCLAMP PCB TERMINAL BLOCK 24A 5mm 6 POLE VERTICAL 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 6 17.5 AMPS Green
MBE157-5-V-L EUROCLAMP PCB TERMINAL BLOCK 24A 5mm 7 POLE VERTICAL 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 7 17.5 AMPS Green
MBE158-5-V-L EUROCLAMP PCB TERMINAL BLOCK 24A 5mm 8 POLE VERTICAL 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 8 17.5 AMPS Green
MBE159-5-V-L EUROCLAMP PCB TERMINAL BLOCK 24A 5mm 9 POLE VERTICAL 1.5 -40 to +130℃ Tin-plated copper alloy 5.00mm 750V 2.5 PA - UL 94 V0 9 17.5 AMPS Green
