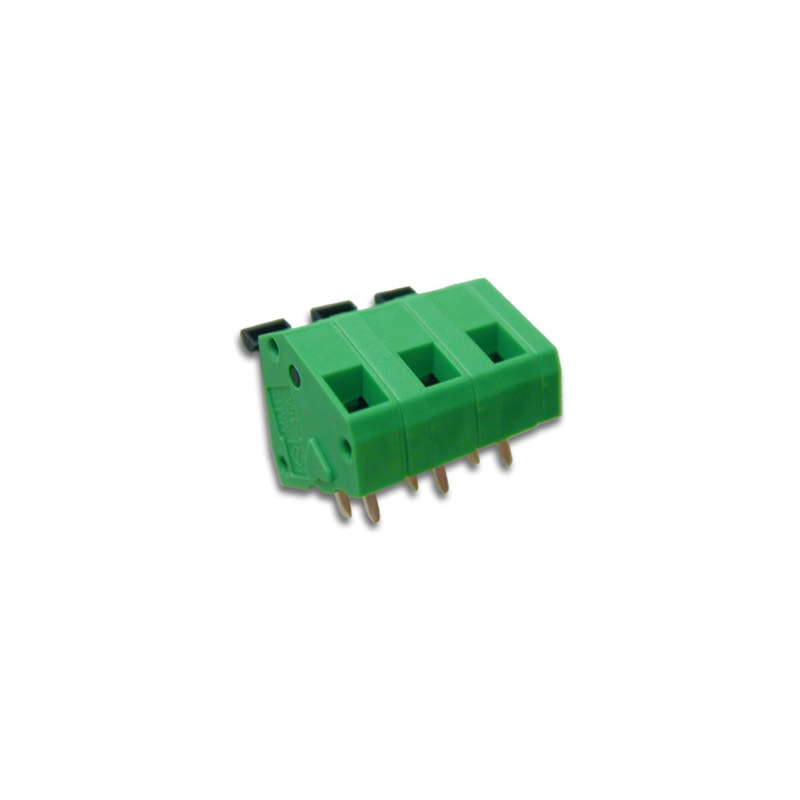

7.62mm Leaver Screwless PCB Terminal Block

Descriptions

• 7.62mm Pitch Screwless PCB Terminal Block
• 1-20 Pole with Modular construction
• 16 Amp Current rating
• Moulded in Green UL94-V0 flame retardant PA.
• SpringClamp Terminal
• Single, Double, Triple and Quad level Variants
• Guided pin alignment
• CE approved
• Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Operating Temperature	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Price
MG101-7.62-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.62mm 1 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	7.62mm	450V	1.5	PA - UL 94 V0	1	16 AMPS	Green	Please login to see prices.
MG102-7.62-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.62mm 1 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	7.62mm	450V	1.5	PA - UL 94 V0	2	16 AMPS	Green	Please login to see prices.
MG103-7.62-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.62mm 2 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	7.62mm	450V	1.5	PA - UL 94 V0	3	16 AMPS	Green	Please login to see prices.
MG104-7.62-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.62mm 3 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	7.62mm	450V	1.5	PA - UL 94 V0	4	16 AMPS	Green	Please login to see prices.
MG105-7.62-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.62mm 4 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	7.62mm	450V	1.5	PA - UL 94 V0	5	16 AMPS	Green	Please login to see prices.
MG106-7.62-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.62mm 5 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	7.62mm	450V	1.5	PA - UL 94 V0	6	16 AMPS	Green	Please login to see prices.
MG107-7.62-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.62mm 6 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	7.62mm	450V	1.5	PA - UL 94 V0	7	16 AMPS	Green	Please login to see prices.
MG108-7.62-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.62mm 7 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	7.62mm	450V	1.5	PA - UL 94 V0	8	16 AMPS	Green	Please login to see prices.
MG109-7.62-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.62mm 8 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	7.62mm	450V	1.5	PA - UL 94 V0	9	16 AMPS	Green	Please login to see prices.
MG110-7.62-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.62mm 9 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	7.62mm	450V	1.5	PA - UL 94 V0	10	16 AMPS	Green	Please login to see prices.
