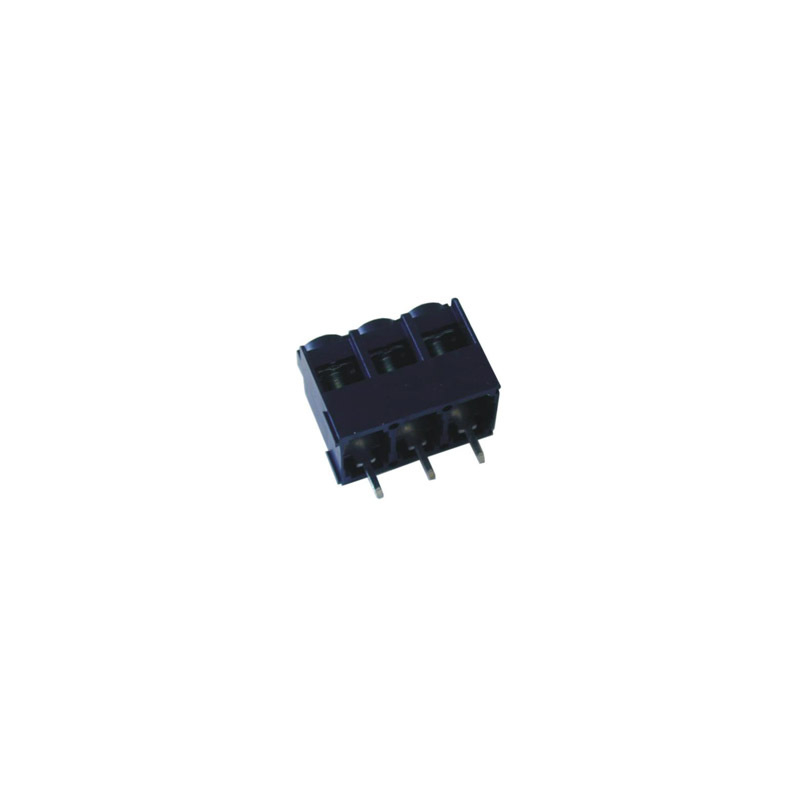

7.5mm Pitch Barrier PCB Terminal Blocks Type YC

Descriptions

• 7.5mm pitch Barrier Terminal Block
• 2-3 pole solid block
• IP20 Touch proof terminals
• Single and Double in variants
• Polarised mouldings
• Moulded in black UL94-V0 flame retardant PA
• Clamp style terminals
• Captive screws
• Guided pin alignment
• UL approved
• Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Operating Temperature	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Price
MT172-7.5-YC	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 7.5mm 2 POLE	2 X 2.5	-40 to +130℃	Tin-plated copper alloy	7.50mm	750V	2 X 2.5	PA - UL 94 V9	2	24 AMP	Black	Please login to see prices.
MT173-7.5-YC	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 24A 7.5mm 3 POLE	2 X 2.5	-40 to +130℃	Tin-plated copper alloy	7.50mm	750V	2 X 2.5	PA - UL 94 V10	3	24 AMP	Black	Please login to see prices.
