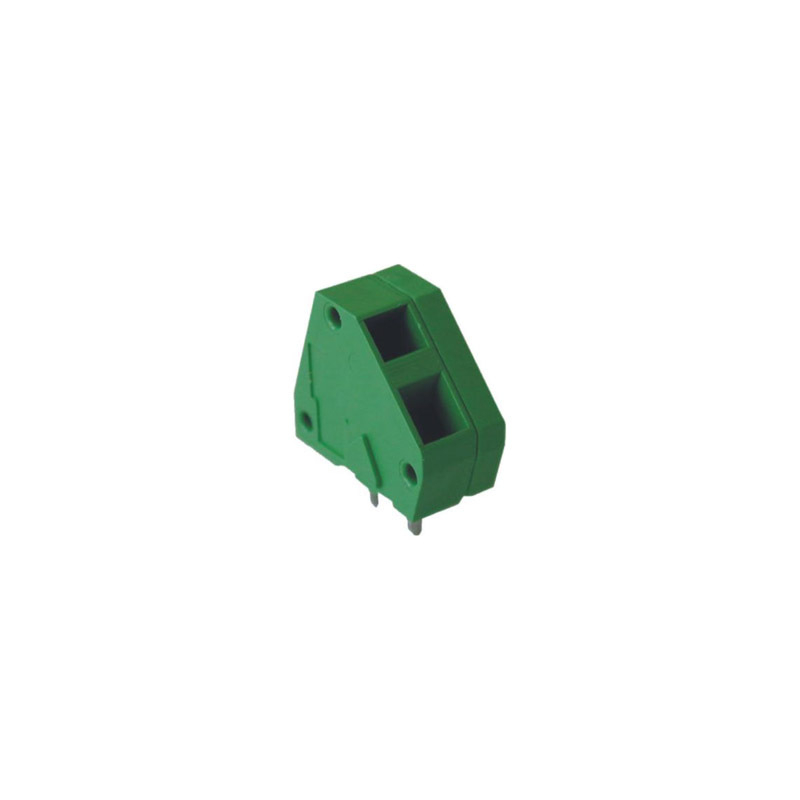

5mm Spring Clamp Screwless PCB Terminal Block

Descriptions

• 5mm Pitch Screwless PCB Terminal Block
• 1-20 Pole with Modular construction
• 16 Amp Current rating
• Moulded in Green UL94-V0 flame retardant PA.
• Spring Clamp Terminal
• Single, Double, Triple and Quad level Variants
• Guided pin alignment
• CE approved
• Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Operating Temperature	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Price
MG111-5.00	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5mm 11 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	5mm	150V	1.5	PA - UL 94 V0	11	16 AMPS	Green	Please login to see prices.
MG120-5.00	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5mm 20 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	5mm	150V	1.5	PA - UL 94 V0	20	16 AMPS	Green	Please login to see prices.
MG119-5.00	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5mm 19 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	5mm	150V	1.5	PA - UL 94 V0	19	16 AMPS	Green	Please login to see prices.
MG118-5.00	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5mm 18 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	5mm	150V	1.5	PA - UL 94 V0	18	16 AMPS	Green	Please login to see prices.
MG117-5.00	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5mm 17 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	5mm	150V	1.5	PA - UL 94 V0	17	16 AMPS	Green	Please login to see prices.
MG116-5.00	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5mm 16 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	5mm	150V	1.5	PA - UL 94 V0	16	16 AMPS	Green	Please login to see prices.
MG115-5.00	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5mm 15 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	5mm	150V	1.5	PA - UL 94 V0	15	16 AMPS	Green	Please login to see prices.
MG114-5.00	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5mm 14 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	5mm	150V	1.5	PA - UL 94 V0	14	16 AMPS	Green	Please login to see prices.
MG113-5.00	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5mm 13 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	5mm	150V	1.5	PA - UL 94 V0	13	16 AMPS	Green	Please login to see prices.
MG112-5.00	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5mm 12 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	5mm	150V	1.5	PA - UL 94 V0	12	16 AMPS	Green	Please login to see prices.
MG101-5.00	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5mm 1 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	5mm	150V	1.5	PA - UL 94 V0	1	16 AMPS	Green	Please login to see prices.
MG110-5.00	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5mm 10 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	5mm	150V	1.5	PA - UL 94 V0	10	16 AMPS	Green	Please login to see prices.
MG109-5.00	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5mm 9 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	5mm	150V	1.5	PA - UL 94 V0	9	16 AMPS	Green	Please login to see prices.
MG108-5.00	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5mm 8 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	5mm	150V	1.5	PA - UL 94 V0	8	16 AMPS	Green	Please login to see prices.
MG107-5.00	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5mm 7 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	5mm	150V	1.5	PA - UL 94 V0	7	16 AMPS	Green	Please login to see prices.
MG106-5.00	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5mm 6 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	5mm	150V	1.5	PA - UL 94 V0	6	16 AMPS	Green	Please login to see prices.
MG105-5.00	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5mm 5 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	5mm	150V	1.5	PA - UL 94 V0	5	16 AMPS	Green	Please login to see prices.
MG104-5.00	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5mm 4 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	5mm	150V	1.5	PA - UL 94 V0	4	16 AMPS	Green	Please login to see prices.
MG103-5.00	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5mm 3 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	5mm	150V	1.5	PA - UL 94 V0	3	16 AMPS	Green	Please login to see prices.
MG102-5.00	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5mm 2 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	5mm	150V	1.5	PA - UL 94 V0	2	16 AMPS	Green	Please login to see prices.
