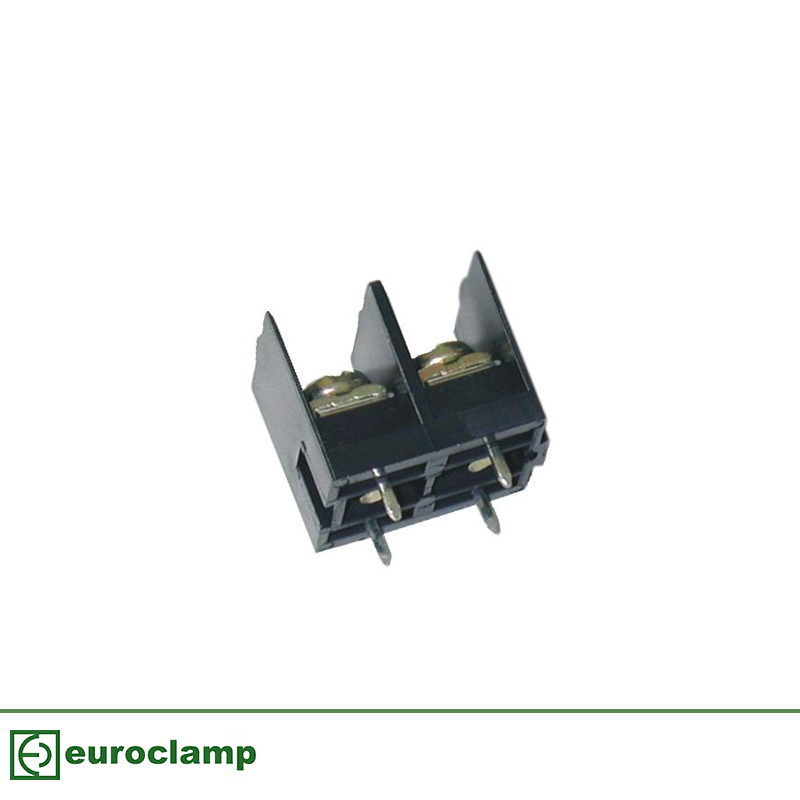

10mm Pitch Barrier PCB Terminal Blocks

Descriptions

• 10mm pitch Barrier Terminal Block
• 2-3 pole solid block
• Single and Double in variants
• Polarised mouldings
• Moulded in black UL94-V0 flame retardant PA
• Clamp style terminals
• Captive screws
• Guided pin alignment
• IMQ, VDE, UL approved
• Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Operating Temperature	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Price
MT212-10	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 25A 10mm 2 POLE	2 X 2.5	-40 to +130℃	Tin-plated copper alloy	10.00mm	750V	2 X 2.5	PA - UL 94 V9	2	25 AMP	Black	Please login to see prices.
MT213-10	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 25A 10mm 3 POLE	2 X 2.5	-40 to +130℃	Tin-plated copper alloy	10.00mm	750V	2 X 2.5	PA - UL 94 V10	3	25 AMP	Black	Please login to see prices.
