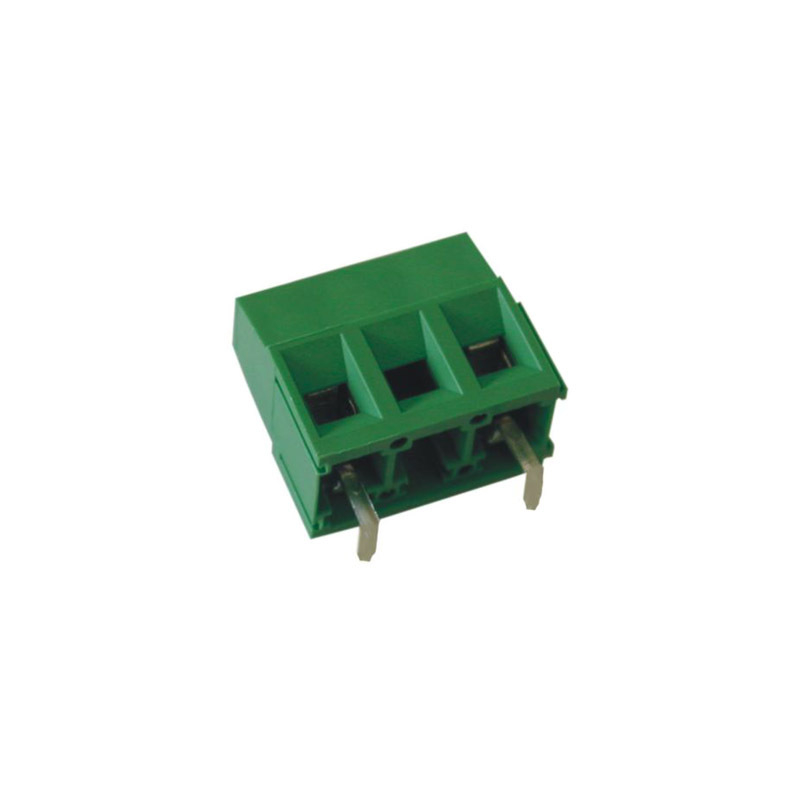

MVS15-H Single Deck PCB Terminal Blocks

MVS15-H Single Deck PCB Terminal Blocks

  • 10.16mm Pitch PCB Terminal Block
  • 1-6 Pole Interlocking
  • 17.5 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ and UL approved
  • Alternative colours available upon request



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MVS151-10.16-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 10.16mm 1P 1.5 -40 to +130℃ Tin-plated copper alloy 10.16mm 750V 2.5 PA - UL 94 V0 1 17.5 AMP Green
MVS152-10.16-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 10.16mm 2P 1.5 -40 to +130℃ Tin-plated copper alloy 10.16mm 750V 2.5 PA - UL 94 V1 2 17.5 AMP Green
MVS153-10.16-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 10.16mm 2P 1.5 -40 to +130℃ Tin-plated copper alloy 10.16mm 750V 2.5 PA - UL 94 V2 3 17.5 AMP Green
MVS154-10.16-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 10.16mm 4P 1.5 -40 to +130℃ Tin-plated copper alloy 10.16mm 750V 2.5 PA - UL 94 V3 4 17.5 AMP Green
MVS155-10.16-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 10.16mm 5P 1.5 -40 to +130℃ Tin-plated copper alloy 10.16mm 750V 2.5 PA - UL 94 V4 5 17.5 AMP Green
MVS156-10.16-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 10.16mm 6P 1.5 -40 to +130℃ Tin-plated copper alloy 10.16mm 750V 2.5 PA - UL 94 V5 6 17.5 AMP Green
