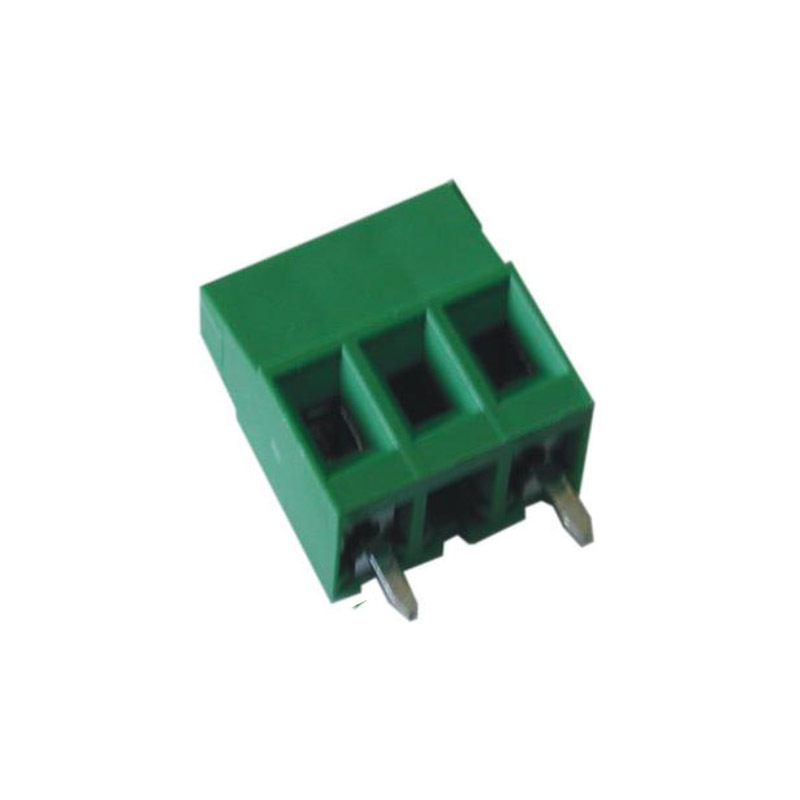

MVS13-V-L Single Deck PCB Terminal Blocks

MVS13-V-L Single Deck PCB Terminal Blocks

  • 7.62mm Pitch PCB Terminal Block
  • 2-6 Pole Mono-block
  • 17.5 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Cage Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ and UL approved
  • Alternative colours available upon request



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MVS131-7.62-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.62mm 1 POLE 1 -40 to +130℃ Tin-plated copper alloy 7.62mm 450V 1.5 PA - UL 94 V0 1 13.5 AMP Green
MVS132-7.62-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.62mm 2 POLE 1 -40 to +130℃ Tin-plated copper alloy 7.62mm 450V 1.5 PA - UL 94 V0 2 13.5 AMP Green
MVS133-7.62-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.62mm 3 POLE 1 -40 to +130℃ Tin-plated copper alloy 7.62mm 450V 1.5 PA - UL 94 V0 3 13.5 AMP Green
MVS134-7.62-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.62mm 4 POLE 1 -40 to +130℃ Tin-plated copper alloy 7.62mm 450V 1.5 PA - UL 94 V0 4 13.5 AMP Green
MVS135-7.62-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.62mm 5 POLE 1 -40 to +130℃ Tin-plated copper alloy 7.62mm 450V 1.5 PA - UL 94 V0 5 13.5 AMP Green
MVS136-7.62-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 7.62mm 6 POLE 1 -40 to +130℃ Tin-plated copper alloy 7.62mm 450V 1.5 PA - UL 94 V0 6 13.5 AMP Green
