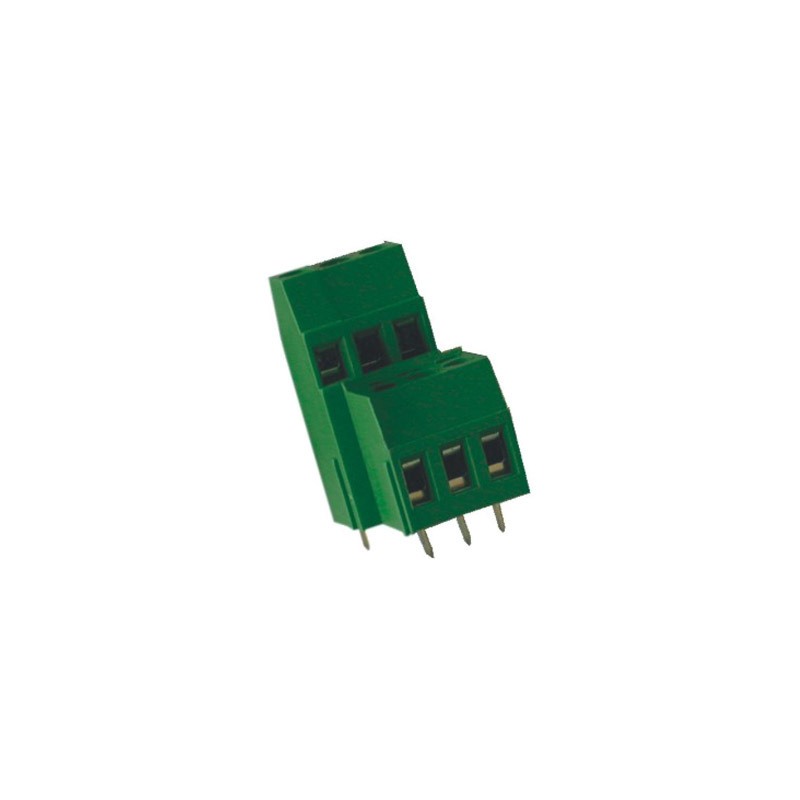

MVD25-V Multi Deck PCB Terminal Blocks

MVD25-V Multi Deck PCB Terminal Blocks

  • 5.08mm Pitch PCB Terminal Block
  • 2-3 Pole Interlocking
  • 16 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ, VDE and UL approved
  • Alternative colours available upon request



No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
MVD2512-508-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5.08mm 12 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 5.08mm 750V 4 PA - UL 94 V10 12 16 AMP Green
MVD2516-508-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5.08mm 16 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 5.08mm 750V 4 PA - UL 94 V11 16 16 AMP Green
MVD252-508-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5.08mm 2 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 5.08mm 750V 4 PA - UL 94 V7 2 16 AMP Green
MVD253-508-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5.08mm 3 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 5.08mm 750V 4 PA - UL 94 V8 3 16 AMP Green
MVD256-508-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5.08mm 6 POLE 2.5 -40 to +130℃ Tin-plated copper alloy 5.08mm 750V 4 PA - UL 94 V9 6 16 AMP Green
