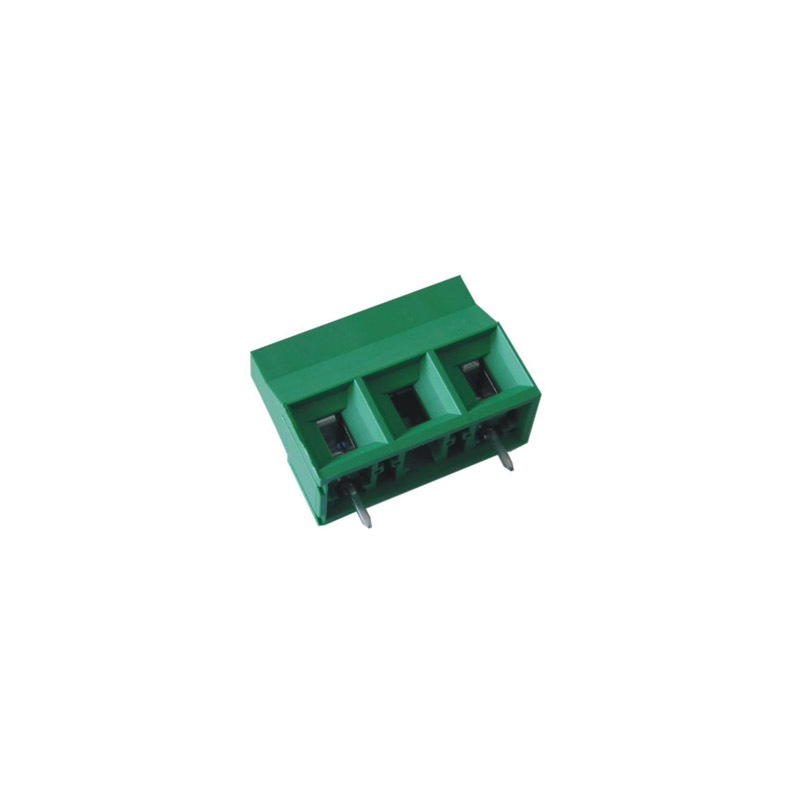

MV49-V Single Deck PCB Terminal Blocks

Descriptions

19.04mm Pitch PCB Terminal Block
1-2 Pole Mono-block
32 Amp Current rating
Moulded in Green UL94-V0 flame retardant PA
Rising Clamp Terminal
Captive screws
Guided pin alignment
IMQ, VDE and UL approved
Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Operating Temperature	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Price
MV491-19.04-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 32A 19.04mm 1 POLE	6	-40 to +130℃	Tin-plated copper alloy	19.04mm	750V	6	PA - UL 94 V5	1	32 AMP	Green	Please login to see prices.
MV492-19.04-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 32A 19.04mm 2 POLE	6	-40 to +130℃	Tin-plated copper alloy	19.04mm	750V	6	PA - UL 94 V6	2	32 AMP	Green	Please login to see prices.
